Performance
| Transmitting power |
28 dBmW |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Wireless isolation |
Y |
| High power |
Y |
| Wi-Fi data rate (max) |
433 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| Networking standards |
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Internal memory |
512 MB |
| Flash memory |
64 MB |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Firmware upgradeable |
Y |
| Certification |
FCC Class A, CE, RoHS |
| Modulation |
16-QAM, 64-QAM, 128-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
Design
| Placement |
Pole, Wall |
| Internal |
N |
| LED indicators |
Y |
| International Protection (IP) code |
IP65 |
Security
| Security algorithms |
64-bit WEP, 128-bit WEP, AES, TKIP, WPA, WPA2-PSK, WPS |
Power
| Output voltage |
24 V |
| Power over Ethernet (PoE) |
Y |
| Power consumption (max) |
7 W |
| Output current |
0.5 A |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
7 dBi |
| Antenna connector type |
RP-SMA |
| Antennas quantity |
2 |
| Detachable antenna(s) |
Y |
Weight & dimensions
| Depth |
428 mm |
| Weight |
260 g |
| Width |
55 mm |
| Height |
55 mm |
Operational conditions
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
10 - 90% |
Packaging content
| CD manual |
Y |
| Quick start guide |
N |
| Mounting kit |
Y |
Additionally
| Colour of product |
White |
| Transfer rate (Mbps) |
433 Mbit/s |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
-30 - 70 °C |

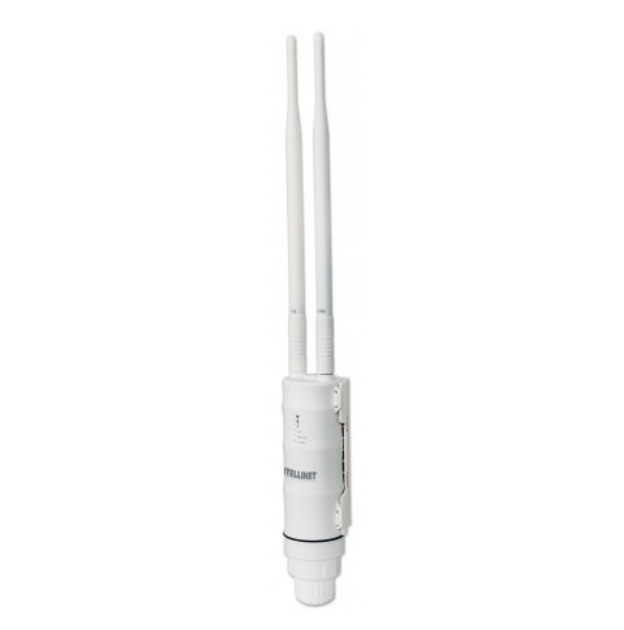

High-Power Wireless AC600 Outdoor Access Point / Repeater, 433 Mbps, IP65, 28 dBm, Wireless Client Isolation, Passive PoE
Increase the coverage of your wireless network with the Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater.
Multiple Solutions in One Device
The Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater serves multiple purposes — an access point for your wireless network, a basic wireless router, a wireless repeater that amplifies the wireless signal to extend your network, a CPE for wireless Internet service (WISP), and two high-gain antennas for long range transmissions — and brings it all together in an easy to configure package.
Concurrent 2.4 and 5 GHz Performance
The main benefit of a dual-band AC access point is the ability to shift traffic from the congested 2.4 GHz band to the relatively uncluttered 5 GHz space. So, you can use the 2.4 GHz band for your everyday tasks, such as surfing the Internet, social media or e-mail, while the 5 GHz AC band can be used for mission-critical transmissions.
Flexibility via passive-PoE
The Intellinet High-Power Wireless AC600 Outdoor Access Point / Repeater comes with a passive PoE port. This port can be used to power the device with the included passive PoE injector for distances up to 60 meters, which is very convenient in situations where AC power is not readily available.
Install it your Way
Pole or wall mounting? The choice is yours. The necessary installation materials are included.
Waterproof
The IP65-rated Intellinet High-Power Wireless AC600 Outdoor Access Point is made using weatherproof and corrosion-resistant material, and can be used indoors or outdoors.
