Data transmission
| MAC address table |
16000 entries |
| Supported data transfer rates |
10/100/1000 |
| Switching capacity |
52 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
Management features
| Quality of Service (QoS) support |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
24 x PoE, IEEE 802.3at/af, PoE+, 10/100/1000Base-T, LED

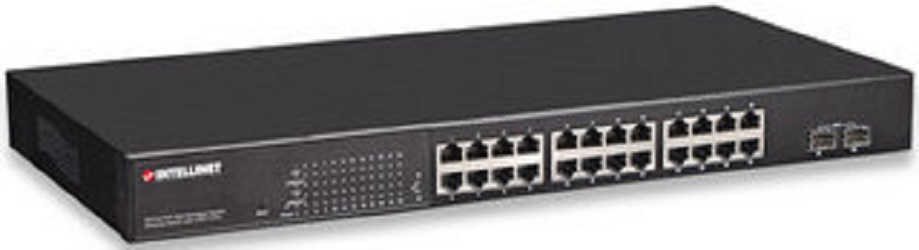

The Intellinet Network Solutions 24-Port PoE+ Web-Managed Desktop Gigabit Switch (560559) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with 24 Gigabit Ethernet ports, all of which support 802.3at/af Power over Ethernet (PoE/PoE+), this switch and can power Wireless LAN access points and bridges, VoIP (Voice over Internet Protocol) telephones, IP surveillance cameras and more while delivering network speeds of up to 1000 Mbps.
Power over Ethernet 802.3at
The Intellinet PoE+ Web-Managed Desktop Gigabit Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 Watts of power per port*. IEEE802.3af or IEEE802.3at compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimizing the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet PoE/PoE+ Splitter.
Eliminate Bottlenecks With Gigabit Speeds
Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, the 24-Port PoE+ Web-Managed Desktop Gigabit Switch (560559) offers plenty of performance for your computers, servers and other networking devices. in addition, two small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances.
Web-Management
This PoE switch is equipped with an impressive array of advanced management functions that allow you to be in full control over your network. The 24-Port PoE+ Web-Managed Desktop Gigabit Switch supports VLAN, port aggregation, QoS, port mirroring, SNMP V1 and the popular SNMP V2c - just to name a few.
