Management features
| Multicast support |
Y |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Networking
| VLAN support |
Y |
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Rate limiting |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| 10G support |
N |
Data transmission
| MAC address table |
16000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000Mbps |
| Maximum data transfer rate |
1 Gbit/s |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
4 |
Performance
| Packet buffer memory |
0.448 MB |
Protocols
| Management protocols |
SNMPv1/v2/v3 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
24x RJ45 10/100/1000 Mbps, 1488000 pps, Black
Intelligent and secure edge connectivity, ideal for small and medium enterprise and branch office networks and essential business applications.

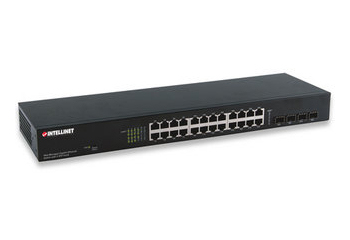

This 24 + 4 Layer 2 Gigabit Switch is a high-performance SNMP-managed device that provides users with 16 10/100/1000 Mbps Ethernet and 4 additional Gigabit SFP ports. The Web/SNMP management provides remote control capability providing flexible network management and monitoring options. Whether managed through an "in-band" SNMP management station or an Internet Web browser, the Intellinet 560818 Gigabit switch facilitates network management and problem diagnosis.
Flexible Network Management
The Intellinet 24-Port Web-Managed Gigabit Ethernet Switch is easy to use and manage, designed to increase business productivity by reliably supporting business applications. It features a Web-based GUI and supports SNMP, RMON, and Telnet. The impressive list of features includes, but is not limited to, ACL management, sophisticated QoS-related settings, port mirroring, integrated IP-connectivity tools, logging, MAC filtering, RADIUS authentication, Port aggregation and detailed port rate configuration options.
Eliminate Bottlenecks with 20 Gigabit Ports
Equipped with 24 auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this switch offers plenty of performance for your computers, servers and other networking devices. in addition, four small form-factor pluggable GBIC module slots (SFP) provide fiber connectivity for greater distances. These are not shared combo-ports, but true Gigabit ports, pushing the total available bandwidth up to 56 Gbps.
