Data transmission
| MAC address table |
4096 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100 Mbps |
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Networking features |
Ethernet, Fast Ethernet |
| Power supply type |
AC |
| Connectivity LEDs |
Y |
| Input frequency |
50/60 Hz |
| Power LED |
Y |
| Wi-Fi |
N |
Ports & interfaces
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Performance
| Packet buffer memory |
0.203 MB |
| Built-in processor |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Additionally
| Wireless technologies |
Wired |

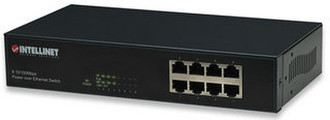

8-Port PoE Office Switch - 8x RJ45 10/100 Mbps PoE ports, 148800 pps, Black
Deliver Power over Ethernet to remote devices.
The INTELLINET NETWORK SOLUTIONS PoE Office Switch is equipped with eight 10/100 Base-TX Fast Ethernet ports, all of which support 802.3af Power over Ethernet (PoE). Besides being a versatile network LAN switch, it also provides a Power over Ethernet option that supplies power injection to 802.3af-compliant devices, such as IP phones, wireless access points and network cameras.
Power over Ethernet 802.3af
The PoE Office Switch has eight 10/100 Base-TX ports that support the 802.3af protocol and is designed to inject up to 7.3 Watts per port. Any device that is 802.3af compliant can be attached to the switch, and no additional power will be required to support the attached device. This eliminates the time and expense of electrical power rewiring, and minimizes the clutter of power supplies and adapters in awkward places such as ceilings and walls. For devices that are not 802.3af compliant, use the PoE Splitter* to send power through the Ethernet cabling to your older wireless access points or network cameras.
Optimum Performance
Besides providing 802.3af Power over Ethernet functionality, the PoE Office Switch has some very impressive features as a switch. For starters, the auto features of this switch make installation Plug and Play and hassle free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10 or 100) and intelligently adjusts for compatibility and optimal performance.
