Other features
Operating temperature (T-T) |
32 - 140 °F |
Ports quantity |
1 |
Link/Act LED |
Y |
Additionally
Transfer rate (Mbps) |
1000 Mbit/s |
Wireless technologies |
Wired |
Ethernet LAN (RJ-45) ports quantity |
1 |
Ethernet LAN connection |
Y |

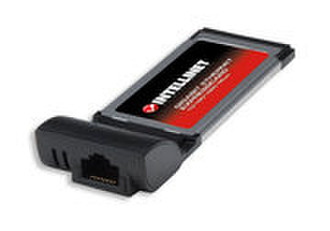

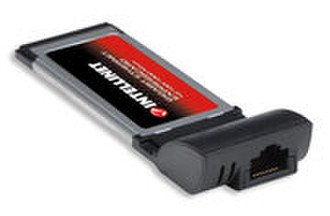

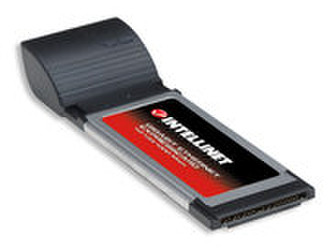

Gigabit Ethernet ExpressCard - 1x RJ-45, Gigabit Ethernet, ExpressCard/34, 25g, Black
The Gigabit Ethernet ExpressCard is a high-performance PCMCIA-style network adapter that fits in the new ExpressCard/54 and ExpressCard/34 slots of a computer. It is an ExpressCard/34 device, and supports the Single PCI Express lane (x1) specification, operating at the baseline 2.5 Gbps data rate and providing faster throughput than the current 32- and 64-bit PCI bus architectures. And there is no need to switch to fiber optic cable – the INTELLINET NETWORK SOLUTIONS Gigabit Ethernet ExpressCard allows you to run Gigabit speeds over your existing copper-wire network cable.
<b>Faster Throughput</b>
The Single PCI Express lane (x1) interface supports throughput rates of up to 2 Gbps when running in full duplex mode. This is ideal for resource-intensive CAD/CAM, client-server database, multimedia, pre-press, advertising graphics, server and mission-critical applications.
<b>Auto-Negotiation</b>
The Gigabit Ethernet ExpressCard will automatically detect the network speed that the LAN switch port is set to and run at the same speed. The card supports 10Base-T Ethernet, 100Base-TX Fast Ethernet and 1000Base-T Gigabit Ethernet.
<b>Full Duplex</b>
When running in full duplex mode, the Gigabit Ethernet ExpressCard provides the following throughput rates: 20 Mbps (10Base-T Ethernet), 200 Mbps (100Base-TX Fast Ethernet) and 2 Gbps (1000Base-T Gigabit Ethernet).
<b>Built-In Diagnostics</b>
The Gigabit Ethernet ExpressCard comes standard with crossover detection, auto correction and pair swap/polarity/skew correction capabilities that make installation and maintenance a snap.
<b>Lifetime Warranty</b>
Strict manufacturing standards ensure the highest quality in all INTELLINET NETWORK SOLUTIONS products. All items carry a full Lifetime Warranty – the strongest quality commitment anyone can make.
- Supports Gigabit speeds over existing network cable;
- Does not require fiber optic cabling to run Gigabit speeds;
- ExpressCard/34 device fits in ExpressCard/54 and ExpressCard/34 slots;
- Single PCI Express lane (x1) 2.5 Gbps interface;
- TruePHY oversampling architecture for lower power consumption and better performance;
- Full duplex speeds (20 Mbps, 200 Mbps, 2000 Mbps);
- Full duplex flow control (IEEE 802.3x);
- Wake-On-LAN (WOL) support;
- Supports jumbo frames;
- Agere ET1310 chipset;
- Compatible with Windows 2000, XP, Vista and 2003 Server;
- Lifetime Warranty.
