Packaging content
| Mounting kit |
Y |
| CD quick installation guide |
Y |
Power
| Power consumption (max) |
11 W |
| Input current |
1 A |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
12 V |
Performance
| Firmware upgradeable |
Y |
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
| Frequency band |
2.412 - 5.825 GHz |
| Number of users |
50 user(s) |
| Spread spectrum method |
DSSS |
| Bandwidth |
5 GHz |
| Auto Wireless Distribution System (WDS) |
Y |
| 5 GHz |
Y |
| High power |
Y |
| Tagged VLAN |
Y |
| Wireless isolation |
Y |
| Number of WLAN connections (max) |
100 |
| VLAN support |
Y |
| Receiver sensitivity |
- 11b (11 Mbps): -90 dBm\n- 11g (54 Mbps): -75 dBm\n- 11n (MSC0 HT20/40): -90 dBm (±2 dBm)\n- 11n (MSC7 HT20/40): -70 dBm (±2 dBm) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Internal memory |
64 MB |
| Flash memory |
8 MB |
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| 2.4 GHz |
Y |
Security
| MAC address filtering |
Y |
| Number of SSID support |
32 |
| Port-based Network Access Control (PNAC) |
Y |
| VPN support |
IPv6, VPN pass-through |
Antenna
| Antenna type |
Internal |
| Integrated antenna |
Y |
| Antennas quantity |
4 |
Protocols
| Supported protocols |
Spanning Tree Protocol |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
1200 Mbit/s |
300 Mbps Wireless N (2.4 GHz) + 867 Mbps Wireless AC (5 GHz), WDS, Wireless client isolation, 26 dBm
Add performance and security to your business' wireless network with the Intellinet High-Power Ceiling Mount Wireless AC1200 Dual-Band Gigabit PoE Access Point.
<b>Concurrent 2.4 and 5 GHz Performance</b>
The main benefit of a dual-band AC access point is the ability to shift traffic from the congested 2.4GHz band to the relatively uncluttered 5GHz space. So, you can use the 2.4GHz band for your everyday tasks, such as surfing the Internet, social media or e-mail, while the 5GHz AC band can be used for heavy-duty traffic like the important VoIP calls in your business environment.
- Super long-range indoor Wireless AC access point and WDS
- The latest in wireless technology transfer delivers up to 867 Mbps (5 GHz) and 300 Mbps (2.4 GHz) speeds

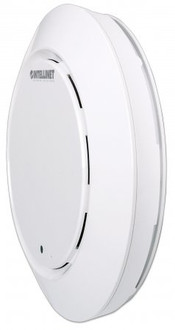

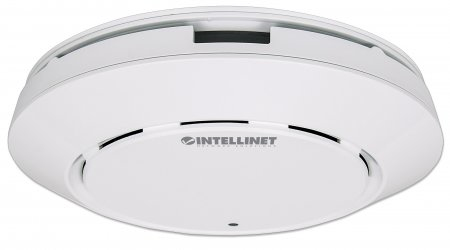

- Inconspicuous smoke detector design blends perfectly into the environment
- Simultaneous dual-band operation (2.4 GHz and 5 GHz) provides twice the bandwidth

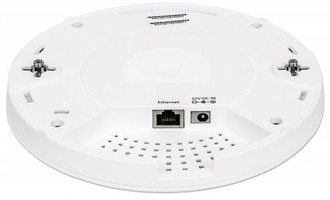

- Gigabit Ethernet port for a super-fast wired connection
- Multiple ESSIDs support VLAN tagging
- Create up to 32 SSIDs: 16 SSIDs for 2.4 GHz, 16 SSIDs for 5 GHz
- Supports up to 50 active users per SSID
- Supports a total of 100 active user connections; 50 at 2.4 GHz and 50 at 5 GHz
- Load balancing — adjust the maximum amount of users per SSID
- Ultra-fast roaming between access points thanks to 802.1X PMK caching
- Integrated RADIUS authentication server for 256 accounts
- Supported modes: access point, WDS
- Supports Wi-Fi Protected Setup (WPS)
- Supports WEP and WPA/WPA2 (TKIP and AES) data encryption
- Wireless client isolation (L2, access point mode)
- QoS (Quality of Service) bandwidth management
- Automatic search for least congested WLAN channel for optimal performance
- PoE-enabled, no need to install near a traditional power source
- IEEE 802.3af-compliant PoE-powered device with one PoE (PD) port
- Power and status LED can be disabled to make the device even less conspicuous
- Easy installation through Web-based user interface
- Detailed statistics for connected wireless clients
- Firmware upgradeable
- Includes mounting bracket and power adapter
- Three-Year Warranty
