Networking
Wi-Fi |
N |
Power over Ethernet (PoE) |
Y |
Supported network protocols |
TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA/ RTSP, Bonjour |
Ports & interfaces
RS-485 ports |
1 |
DC-in jack |
Y |
Microphone in |
Y |
Line-out |
Y |
I/O terminal ports |
1 |
BNC input ports |
1 |
Technical details
PTZ control (Pan/Tilt/Zoom) |
Y |
Flash memory |
8 MB |
System requirements
Minimum RAM |
64 MB |
Minimum processor |
Pentium IV, 1.8 GHz |
Video
PAL resolutions |
704 x 576, 352 x 288, 176 x 144 pixels |
NTSC resolutions |
704 x 480, 352 x 240, 176 x 120 pixels |
Maximum frame rate |
30 fps |
Motion JPEG frame rate |
30 fps |
MPEG-4 frame rate |
30 fps |
Additionally
Ethernet LAN (RJ-45) ports quantity |
1 |
NVS30 Network Video Server, 25/30 fps, NTSC/PAL, IEEE 802.3af, Fast Ethernet, MPEG4/M-JPEG, 30W, 900g, black

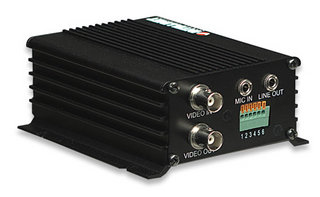

The INTELLINET NETWORK SOLUTIONS NVS30 Network Video Server digitizes analog video and then transmits the signal across an IP network, such as a LAN, intranet or the Internet. This allows you to take your first step in implementing an IP-based system without having to install new network cameras.
<b>Auto-Setup</b>
No need to worry about complex network setup procedures. The installation wizard provides an easy setup that allows a non-technical person to begin using the camera right away.
<b>SSL Encryption</b>
Secure network connections using data encryption between the camera and the network client for additional data security.
<b>Dual Mode: Simultaneous MPEG4 + Motion-JPEG Streaming</b>
The NVS30 Network Video Server supports MPEG4 as well as Motion-JPEG video formats, providing superior quality and, at the same time, continuing to support existing applications. MPEG4, on the other hand, allows you to transmit a larger amount of data over the same amount of bandwidth while providing smooth and seamless viewing.
<b>Bi-Directional Audio Support</b>
Attaching a microphone and loudspeakers to the NVS30 Network Video Server will allow you to listen and talk using the two-way audio support. On top of that, the camera is equipped with an internal microphone. This is ideal for most security and surveillance applications.
<b>Integrated DDNS Client</b>
Utilize the free DYNDNS service (like DYNDNS.org) in order to connect to your camera, even if you do not have a static IP address assigned by your ISP (Internet service provider). This feature lets you easily set up a URL that can be used to access the camera through the Internet using any Web browser.
<b>Unique Windows Live Messenger Support</b>
Set up a free MSN / Hotmail account for the network camera and connect to it via Windows Live Messenger as if it were a regular contact in your buddy list. Remote access cannot be any easier.
<b>Power over Ethernet</b>
The NVS30 Network Video Server supports the 802.3af standard, allowing it to be installed in locations where an AC power source is not readily available. Simply plug the camera into a PoE-compliant switch and begin transmitting power as well as data over the Cat5e or Cat6 network cabling.
<b>Features:</b>
- Analog video BNC input and analog video BNC loop-through port;
- Excellent image quality with 30 fps full-motion video in all resolutions;
- Supports image resolutions up to 640 x 480 (VGA);
- Audio support, full duplex;
- Video access through any standard Web browser;
- Integrated motion detection with pre- and post-alarm image/video buffering;
- Event-triggered FTP and e-mail upload of still images and videos;
- External microphone input connector;
- External speaker output connector;
- Terminal block for external sensors or external alarm devices;
- Supports simultaneous MPEG4 and Motion-JPEG image compression;
- Selectable video buffer for smoother video streaming;
- Controllable frame rate;
- Supports MPEG4 video streaming with CBR (constant bit rate) and VBR (variable bit rate) modes;
- Mobile phone streaming live video through 3GPP / ISMA / RTSP;
- Mobile phone live image through 2.5 WAP;
- Windows Live Messenger support;
- Supports privacy zone and text overlay functionality;
- MPEG4 + Motion-JPEG + 3GPP mobile phone streaming, audio and 10x digital zoom;
- Supports HTTPS encryption for enhanced security;
- Supports UPnP with UPnP port forwarding capability;
- Integrated e-mail, FTP, DDNS and DHCP client;
- Supports IEEE 802.3af Power over Ethernet injectors, mid- and endspans;
- Supports Pan/Tilt/Zoom CCTV cameras;
- Easy-to-use 16-channel camera viewing and recording utility included (not compatible with NSC10 and NSC18 cameras).
