Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
Other features
| Bandwidth |
2.4 GHz |
| Power supply type |
DC |
| Operating temperature (T-T) |
32 - 122 °F |
| Input current |
1.0 A |
| Frequency range |
2.400 – 2.4835 GHz |
| Input voltage |
12 V |
| Networking features |
Fast Ethernet |
| Outdoor range |
100 m / 328 ft.\n600 m / 1968 ft. |
| Flash memory |
4 MB |
| xDSL connection |
N |
Protocols
| Supported network protocols |
CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS |
| DHCP server |
Y |
| DHCP client |
Y |
| DMZ support |
Y |
Security
| MAC address filtering |
Y |
| Firewall security |
URL |
Power
| Power over Ethernet (PoE) |
Y |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
3 |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
Networking
| Receiver sensitivity |
11n (300 Mbps): 20 MHz: -71 dBm; 40MHz: -68 dBm\n11g (54 Mbps): -74 dBm\n11b (11 Mbps): -87 dBm |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
Wireless networking with four times the range and 12 times the speed.

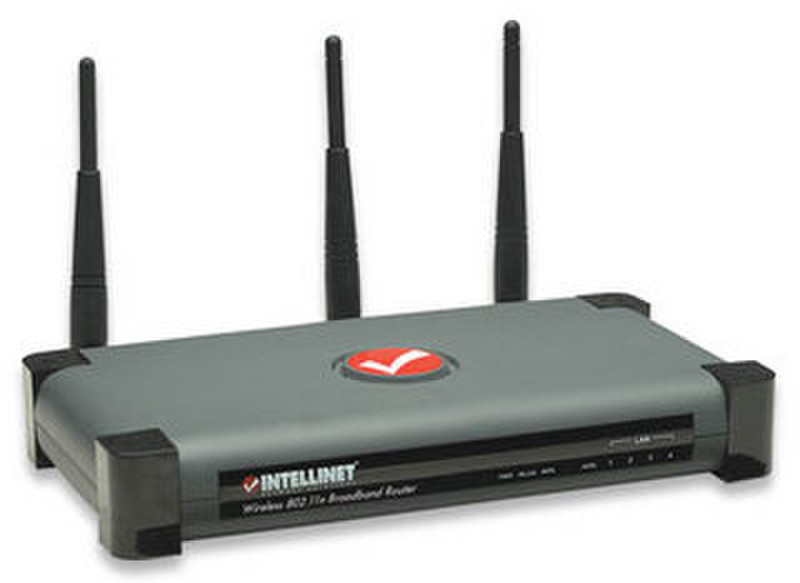

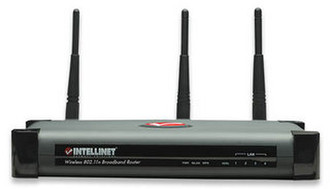

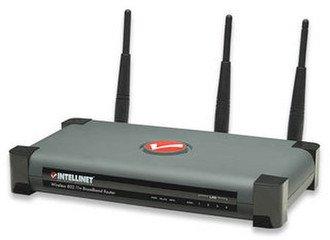

The INTELLINET NETWORK SOLUTIONS Wireless 802.11n Broadband Router is the latest in wireless networking. Taking advantage of the Wireless-N technology, a wireless network can now see greatly enhanced network speeds and an increase in overall transmission distance.
<b>Multiple Solutions in One Device</b>
The INTELLINET NETWORK SOLUTIONS Wireless 802.11n Broadband Router serves multiple purposes — an access point for your wireless network, a 4-port router for hard-wiring Ethernet devices — and brings it all together so that the devices can access a high-speed Internet connection.
<b>Increased Performance and Wireless Coverage</b>
The new Wireless-N standard has dramatically increased the overall performance of a wireless network. With speeds up to 300 Mbps and a coverage distance up to 600 m, the new Wireless-N technology greatly surpasses that of 802.11g.
<b>Features:</b>
- Up to 300 Mbps network link speed;
- Supports WMM function to meet the multi-media data bandwidth requirement;
- Supports advanced 2T3R MIMO technology, enhancing the throughput and coverage range significantly;
- Supports Wi-Fi Protected Setup (WPS);
- Supports WEP and WPA/WPA2 (TKIP and AES) data encryption;
- Integrated 10/100 Mbps LAN switch with Auto MDI/MDI-X support;
- Easy Internet setup through WAN connection wizard;
- DHCP server assigns IP addresses for all LAN users;
- DHCP Server supports static lease management;
- Supports virtual server, port forwarding and DMZ (demilitarized zone);
- Supports DDNS (dynamic DNS);
- Supports UPNP (Universal Plug and Play);
- Integrated anti-DOS firewall;
- QoS (Quality of Service) bandwidth management;
- VPN Pass Through (PPTP);
- Complies with 2.4 GHz IEEE 802.11n standard and is backward compatible with IEEE 802.11g/b standards;
- Use INTELLINET NETWORK SOLUTIONS Wireless N WLAN adapters and cards for best compatibility and performance;
- Easy installation through Web-based user interface;
- System Status;
- Security Log;
- Firmware Upgradeable.
