Security
| Firewall security |
NAT |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Networking
| Receiver sensitivity |
-65 dBm (54 Mbps)\n-78 dBm (11 Mbps) |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, DNS |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11g |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g |
| Modulation |
16-QAM, 64-QAM, BPSK, DPSK, OFDM, QPSK |
Other features
| xDSL connection |
N |
| Internal memory |
16 MB |
| Flash memory |
2 MB |
| Bandwidth |
2.412 GHz |
| Networking features |
Fast Ethernet |
| Input voltage |
7.5 V |
| Input current |
1.5 A |
| Operating temperature (T-T) |
32 - 122 °F |
| Frequency range |
2.412 - 2.484GHz |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RP-SMA |
| Antennas quantity |
1 |
Performance
| Firmware upgradeable |
Y |
| Chipset |
KS8695PX/Ralink 2561ST |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
Wireless G Broadband VPN Router, 4 x Fast Ethernet, 1 x WAN, 802.11b/g, DHCP, VPN, QoS, Black

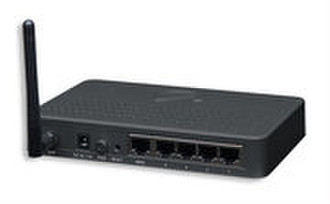

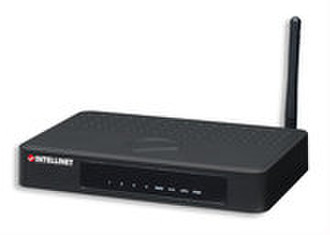

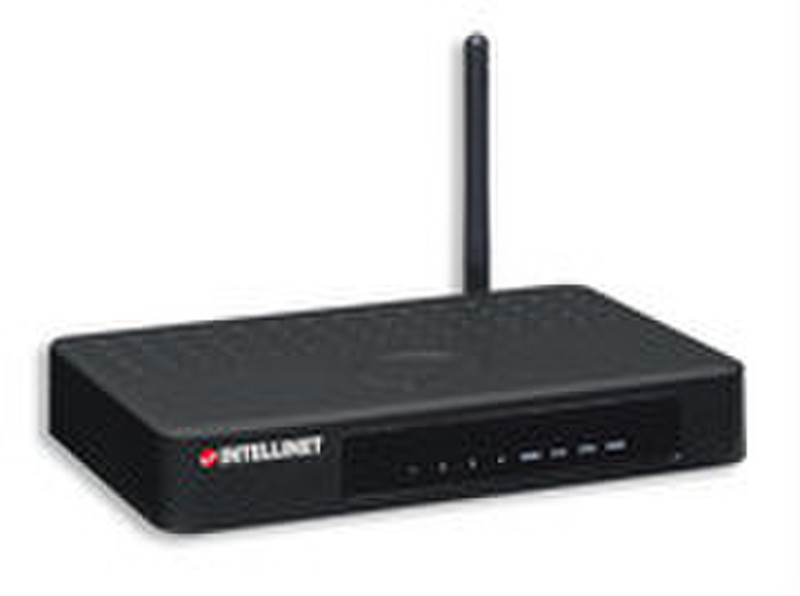

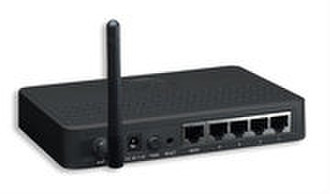

Wireless G Broadband VPN Router
Create a wireless network easily, in your home or office.
The INTELLINET NETWORK SOLUTIONS Wireless G Broadband Router, Model 523431, lets you experience fast speeds as you surf the Web, download music or photos, and play online games. This wireless router works with 802.11g as well as the older 802.11b products, and also includes a 4-port 10/100 LAN switch so you can connect using network cable or go wireless to satisfy all your needs.
Flexible.
The Wireless G Broadband Router allows you to conveniently share your network connection with multiple users on your network with or without wires. It delivers 10/100 Mbps (auto-sensing) WAN and LAN connections and is interoperable with 54 Mbps (802.11g) and 11 Mbps (802.11b) devices over a 2.4 GHz band wireless network. The WAN connection wizard makes installation a snap.
Secure.
Keeping intruders out of your network can be a challenge, and this feature-rich wireless router is designed to make that challenge easier. It includes a true firewall that secures your network against hackers. With Network Address Translation (NAT) to shield your networked devices from intruders, Denial of Service (DoS) attack prevention to avert potential threats by scanning incoming traffic, and WEP and WPA encryption to conceal your information on the wireless LAN from eavesdroppers, you can rest assured that you have taken the necessary precautions to protect the data on your network. As if this were not enough, the built-in VPN server supports up to five connections simultaneously, giving you secure access to your office or corporate network.
Efficient.
As you add more applications to your network, and as technology continues to advance, you need to be able to optimize the precious bandwidth on your Internet-access facility. The Quality of Service (QoS) feature allows you to determine which applications are most important, and ensure they have priority with available bandwidth during network peak times so the applications that are most important to you are running at their best.
Lifetime Warranty.
Strict manufacturing standards ensure the highest quality in all INTELLINET NETWORK SOLUTIONS products. All items carry a full Lifetime Warranty — the strongest quality commitment anyone can make.
Features:
- Up to 54 Mbps network data transfer rate;
- Compatible with all 802.11b & g wireless products;
- Easy wireless setup through integrated site survey function;
- Supports WEP and WPA (TKIP and AES) data encryption;
- Supports MAC filtering for wireless clients;
- Supports Access Point mode and WDS (Wireless Distribution System) mode;
- Integrated 10/100 Mbps LAN switch with Auto MDI/MDI-X support;
- Easy Internet setup through WAN connection wizard;
- DHCP server assigns IP addresses for all LAN users;
- Supports DDNS (dynamic DNS);
- Supports UPNP (Universal Plug and Play);
- VPN server (PPTP) supports five connections simultaneously;
- Supports VPN pass-through (IPSec, PPTP, L2TP);
- 94 Mbps WAN to LAN throughput for wired networks;
- Supports QoS (Quality of Service) bandwidth management;
- Integrated anti-DOS firewall;
- WOL (Wake-On LAN) function sends a wakeup signal to any computer in the LAN;
- Integrated scheduler to limit Internet access to client computers in the LAN;
- Content control through URL and domain filter;
- Remote management function (enable/disable and management port);
- Easy installation through Web-based user interface;
- Firmware updates via Web-based user interface;
- Lifetime Warranty.
