Security
| Firewall security |
NAT |
| System event log |
Y |
| MAC address filtering |
Y |
Other features
| Throughput |
50 Mb/s |
| xDSL connection |
Y |
| Internal memory |
16 MB |
| Flash memory |
2 MB |
| Networking features |
Fast Ethernet |
| Input voltage |
12 V |
| Number of users |
253 user(s) |
| Input current |
1 A |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11g |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g |
Antenna
| Antenna connector type |
RP-SMA |
| Antennas quantity |
1 |
Management features
| Reset button |
Y |
| Web-based management |
Y |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

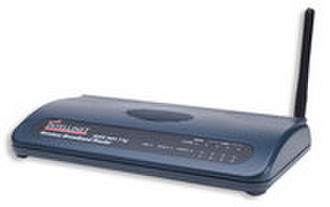

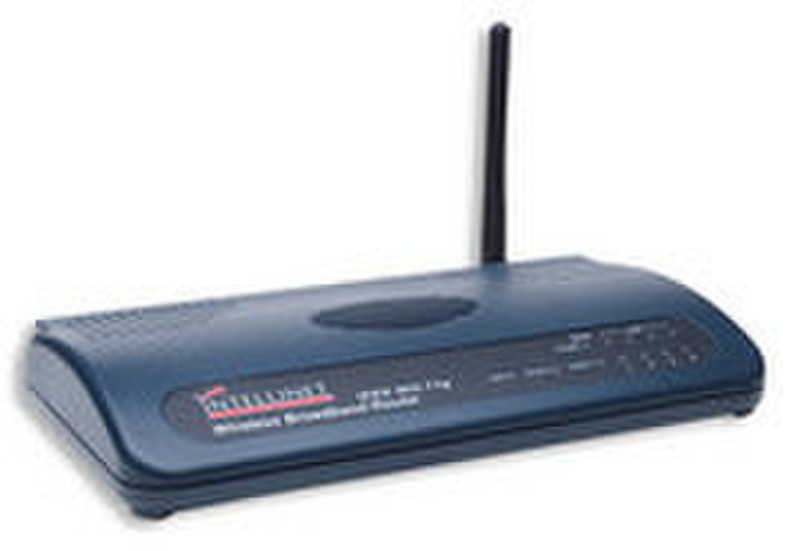

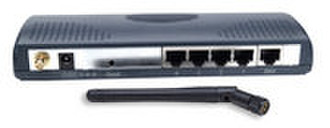

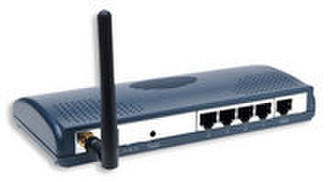

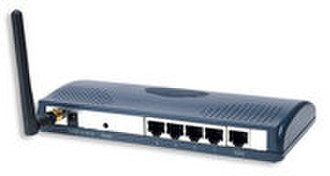

Wireless G Router, DSL, 4 x Fast Ethernet, 1 x WAN, 802.11b/g, RP-SMA, 16MB SDRAM, 2 MB NOR Flash, Blue
Wireless G Router
IP Sharing.
The NAT/NAPT function lets you share the ADSL or Cable line with all the Intranet users (supports up to 253 users). It also provides virtual server and virtual DMZ functions so that your internal server(s) can be accessed from the Internet.
54 Mbps Wireless Access Point.
The high speed 54 Mbps IEEE 802.11g wireless LAN access point function can let your IEEE 802.11g and 802.11b wireless clients access the Intranet or Internet through this router.
Best ISP Interoperability.
The router can support ADSL, cable and lease line WAN connections. It provides Dynamic IP, Static IP, PPPoE, PPTP, L2TP, Telstra Big Pond protocols that can provide best ISP interoperability.
Supports Special Applications.
The router lets you setup trigger ports of special applications, i.E. online games.
Anti-DoS SPI Firewall.
The SPI (Stateful Packet Inspection) firewall can protect your Intranet PCs from illegal access and many kinds of DoS attacks from the Internet. It logs all events for later review and also provides Internet access control functions.
Virtual Server and DMZ.
The virtual server and DMZ function let you setup your servers in the Intranet so they can be accessed from outside your LAN.
Web Configuration.
You can configure the router through the friendly Web user interface with any standard web browser (MSIE, Mozilla/Firefox, Opera, ...).
- Provides up to 54 Mbps Data Transfer Rate;
- Supports 64/128 Bit Key Length WEP Encryption;
- Supports Special Applications (Port Triggers);
- Supports DDNS (DynDNS);
- VPN Pass Through (IPSec/PPTP).
