Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
Networking
| Auto MDI/MDI-X |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Power
| Input voltage |
5 V |
| Input current |
2 A |
Additionally
| Transfer rate (Mbps) |
2000 Mbit/s |
8 x 10/100/1000Mbps RJ45 Port, Auto MDI/MDIX, Half & Full duplex

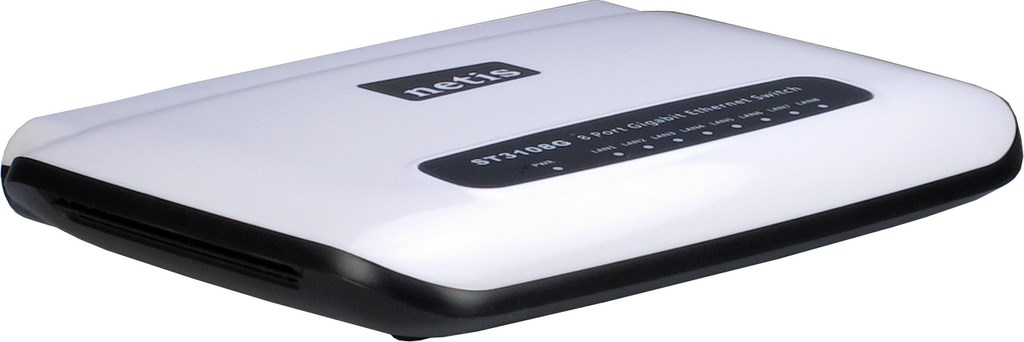

The netis ST3108G Gigabit Ethernet Switch provides 8 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. It provides high performance with minimum power consumption. It will cut power consumption when cable disconnected, then it wakes up and operates in normal mode when incoming signal detected, in which way that greatly reduces the power consumption.
