Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Switching capacity |
3.2 Gbit/s |
| Jumbo frames |
2000 |
Networking
| Auto MDI/MDI-X |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Packaging data
| Mounting brackets included |
Y |
| Quick start guide |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Transfer rate (Mbps) |
200 Mbit/s |
| Jumbo Frames support |
Y |

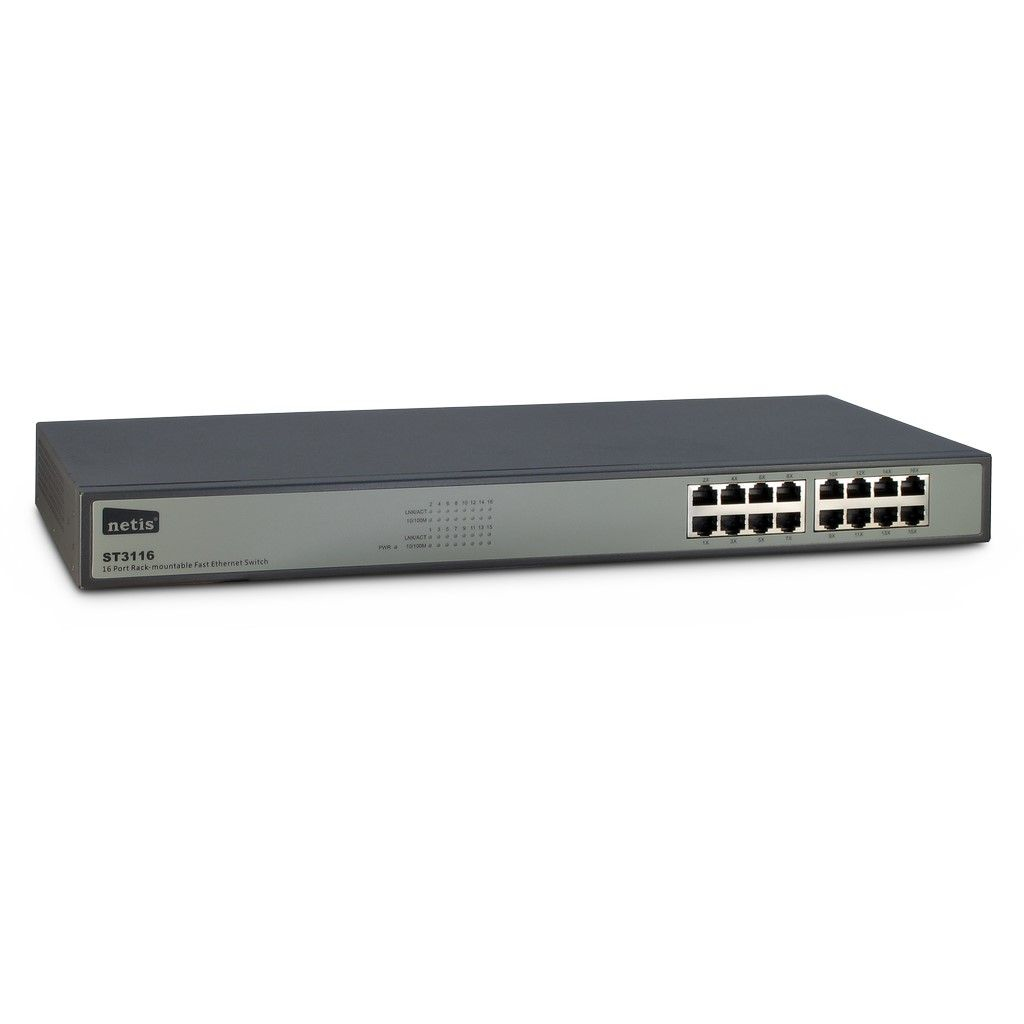

16 Port Fast Ethernet Rackmount Switch, MAC MDI/MDIX, supports Jumbo frame, 3.2Gbps switching capacity
The netis ST3116 Fast Ethernet Rackmount Switch provides 16 10/100Mbps Auto‐Negotiation RJ45 ports. It is ideal for the small and medium office use. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or uplink ports.
The 16 Port Fast Ethernet Rackmount Switch provides you with high-performance, seamless and standard upgrade to improve your old network to a 100Mbps network.
