Scanning
| Wavelength |
617 nm |
| Working distance |
500 mm |
| Pitch reading angle |
-48 - 48 ° |
| Decoding standards |
128/ EAN 128; 39; Interleaved 2/5; UPC/EAN/ISBN; 2/5 Matrix; Codabar; 93; MSI; Plessey; 93i; 11; Telepen; ISBT128; RSS; Micro PDF; Macro PDF; PDF; Codablock; |
| Read rate (max) |
200 reads/s |
| Maximum scan area |
43.1 x 399 mm |
| Tilt angle |
0 - 40 ° |
Other features
| Light source |
0 - 100000 LUX |
Power
| Number of reads per charge |
10000 |
PDF, 200 scan/sec, Bluetooth v1.2, 263g + Charger
- Unique design enables users to increase productivity with truly “hands-free” scanning;
- Bluetooth® radio communication eliminates cables and facilitates complete mobility;
- Interfaces with Intermec terminals and personal computers;
- Intermec EV10 linear scan engine delivers unparalleled flexibility reading high density, PDF and standard range bar codes;
- Industrial durability stands up to harsh environments and multiple drops;
- Small size is easily articulated for quick scanning.
Product Overview

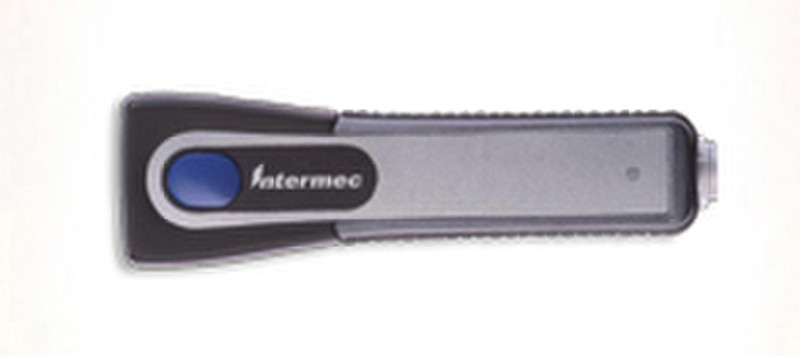

Intermec’s SF51 scanner incorporates a unique, light weight form factor with a magnetic attach/release mechanism to maximize productivity. The unique patent pending design takes “hands free scanning” to a new level. Instead of mounting the scanner onto the user’s hands or fingers and thereby restricting use, the SF51 is designed to be worn on the waist, wrist, or chest. The attach/release mechanism can be used without looking at it. This allows the user to quickly and easily access and release the scanner when it’s needed, and when done scanning, reattach the SF51 for un-inhibited use of their hands.
Rugged, Tested Design
An extremely durable scanner with a wireless personal area network (PAN) radio based on Bluetooth communication protocol, the SF51 can cordlessly connect to Intermec terminals without a base station, delivering an affordable, high performance solution for scan intensive applications.
Superior Performance
The SF51 utilizes the Intermec EV10, an innovative linear scan engine with new APS CMOS technology. It delivers unparalleled flexibility by combining high density, PDF417 and standard range bar code reading in one scan engine. The solid state scan engine delivers a snappy 200 scans per second, easily reading poor quality and damaged bar codes from up to 50 cm (19.7 inches) away.
Mobility
Intermec’s SF51 cordless scanner is designed for applications that require complete mobility and hands free scanning in transportation, logistics, warehousing and manufacturing environments. Used alone or coupled with an Intermec terminal or vehicle mount computer the SF51 excels in scan intensive applications such as picking, inventory management, direct store delivery, and work-in-process.
