Packaging content
| Manual |
Y |
| Warranty card |
Y |
| Quick start guide |
Y |
| Mounting kit |
Y |
Ports & interfaces
| Number of HDMI outputs |
1 |
| HDMI in |
1 |
Technical details
| Maximum resolution |
4096 x 2160 pixels |
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Material |
Metal |
| Type |
AV transmitter & receiver |
| Connector 1 |
HDMI Type A F |
Operational conditions
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
Packaging data
| Package dimensions (WxDxH) |
241 x 60.2 x 162 mm |
Additionally
| AC adapter bundled |
Y |
| Operating temperature range (T-T) |
0 - 50 °C |
The ideal low-cost and reliable solution of distributing HDMI over long distances that traditional cables are unable to address.
HDMI Extender over Ethernet

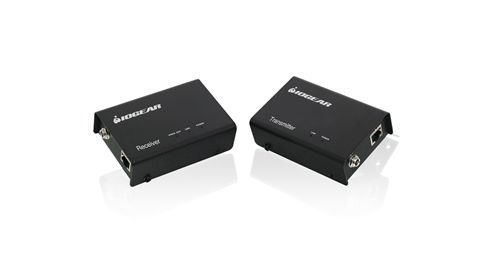

On average, traditional HDMI cables have distance limitations of transmitting an HDMI signal longer than 25ft. With IOGEAR's HDBaseT HDMI Extender Kit, HDMI audio and video signals can be transmitted up to 228ft using a single solid Cat6a cable. The HDMI extender kit consists of a local transmitter unit and remote receiver unit connected using a single solid Ethernet cable. This HDMI extender kit provides a low-cost and reliable solution of distributing HDMI over long distances that traditional cables are unable to address. Using existing Cat5e/Cat6/Cat6a infrastructure, HDBaseT technology allows for single cable installation avoiding the hassle of running multiple cables and reducing potential failure points. This plug-n-play solution is compatible with any operating system and requires no additional drivers or software.
What is HDBaseT?
HDBaseT is a consumer electronic and connectivity standard that's revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables the transmission of uncompressed multimedia content at resolutions up to 4K (UHD). The HDBaseT architecture allows for a full bandwidth of 10.2Gbps data throughput over a single Cat 5e/Cat6/Cat6a cable and supports all High Speed HDMI functions including high-definition video, audio, power, 100BaseT Ethernet, USB, and certain control signals such as CEC, RS-232 or IR.
Astonishing Picture Quality at Long Distances
With the A/V industry quickly adopting 4K (UHD) as the new high-resolution video standard, long range video distribution can be a challenge with standard HDMI cables that experience signal degradation at 25 feet. Using IOGEAR’s HDBaseT HDMI Extender and a single Cat6a cable, transmit HDMI signals at distances up to 228ft (70m) at 1080p resolution. Be amazed at how 4K UHD (3840x2160) picture quality, four times the resolution of high-definition 1080p, can be maintained even at 130ft (40m) away from your video source using Cat6a cable. This HDMI extender kit can make any video source look great, while future proofing your setup for 4K implementation.
HDMI Extender for Multiple Applications
IOGEAR’s HDBaseT HDMI Extender is an ideal solution for digital signage applications and for routing uncompressed 4K (UHD) HDMI A/V signals over inexpensive Ethernet cable at home for digital entertainment centers or in boardrooms, conference rooms, classrooms, and sports bars that require HDMI video to be extended for greater distances. The extender also has applications for home installation, retro-fitting, retail environments, show rooms and worship centers where remote displays are required.
