Storage
| Drive device, transfer rate |
150 MB/s |
| Drive device, buffer size |
8 MB |
| Hard drive speed |
7200 RPM |
| Total installed storage capacity |
2000 GB |
| Storage drive capacity |
500 GB |
| Number of storage drives installed |
4 |
Processor
| Processor core voltage (AC) |
1.25 – 1.325 V |
| Processor front side bus |
533 MHz |
| FSB Parity |
N |
| Tcase |
69.2 °C |
| ECC supported by processor |
N |
| Bus type |
FSB |
| Processor cache |
0.512 MB |
| Processor lithography |
65 nm |
| Thermal Design Power (TDP) |
86 W |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
37.5 mm |
| Processor ARK ID |
27129 |
| Processor cache type |
L2 |
| CPU multiplier (bus/core ratio) |
24 |
| Processor operating modes |
64-bit |
| Processor cores |
1 |
| Processor frequency |
3.2 GHz |
Processor special features
| Intel 64 |
Y |
| Number of Processing Die Transistors |
188 M |
| Embedded options available |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel Demand Based Switching |
N |
| Execute Disable Bit |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Enhanced Intel SpeedStep Technology |
N |
Networking
| Supported network protocols |
TCP/IP, IPX, NetBEUI, CIFS/SMB, NFS, AFP, HTTP 1.1, FTP, WEBDAV |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u |
Other features
| Networking features |
Gigabit Ethernet |
Additionally
| Intel AES New Instructions |
N |
| Internal RAM type |
DDR2 |
| Processing die size |
81 mm² |
| Internal RAM |
0.5 GB |
| Transfer rate (Mbps) |
1000 Mbit/s |

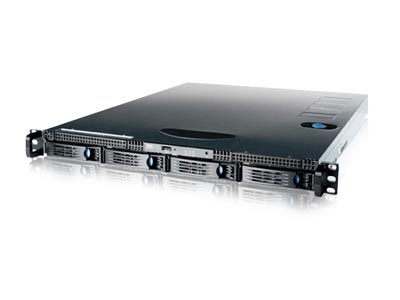

StorCenter Pro Nas 200rL 2TB Linux
The Iomega® StorCenter™ Pro NAS 200rL Server 2TB Linux® is a cost-effective way to add reliable, secure rack-mount storage to your network. This 1U slim server features true hot swappable drives configured in RAID 0, 1, or 5 with auto-rebuild capability. It utilizes Linux OS and integrates easily with your existing network infrastructure thanks to its capability to support ADS and network file protocols like CIFS, AFP, FTP and NFS. Additionally, users can connect up to 2 USB printers and share them through the network. This NAS solution provides easy to setup and use storage to protect, share and back up your critical data.
