Ports & interfaces
| FireWire 800 |
N |
| FireWire 400 |
N |
Storage
| Number of storage drives supported |
2 |
| Hot-swap |
Y |
| Card reader integrated |
N |
1x 3.5" - 2x 2.5" SATA Hot-Swap Mobile Cage, 3.0Gbps
- Aluminum Frame.
- Hard Drive Interface: SATA I/II.
- Form Factor: 1 x 3.5" Bay for 2 x 2.5" Hard Disk Drives.
- High Performance Transfer Rate up to 3.0Gbps.
- Support RAID 0 and 1 Functions (need an additional RAID controller).
- Point to Point, Free from Master/ Slave Setting.
- With one 4Pin Power and two 7Pin Signal Connectors.
- Energy Saving on Using 2.5" HDDs or SSD.
- LED Indicators for Power & HDD access.

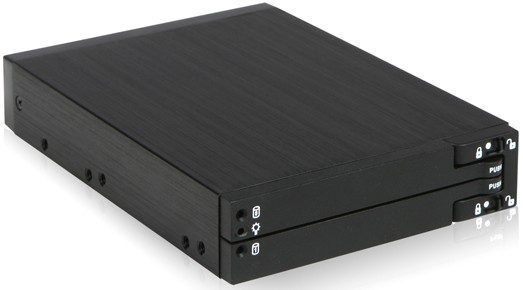

BPU-2535 internal drive cage is a compact and cost effective solution for an internal 3.5" drive cage with two 2.5'' drive bays. It provides an extra storage within a compact design to satisfy many application needs. BPU-2535 is constructed of aluminum material that provides best heat dissipation required for high performance 2.5" laptop SATA drives. With mirroring technique (RAID 1), BPU-2535 is able to maintain data in two disk drives simultaneously, which provides extra protection on critical data backup.
