Memory
| Supported memory clock speeds |
2133, 2400, 2600, 2666, 2800, 2933, 3000, 3100, 3200, 3300 MHz |
| ECC |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Maximum internal memory |
64 GB |
Performance
| BIOS memory size |
16 MB |
| BIOS type |
UEFI AMI |
| Trusted Platform Module (TPM) |
Y |
Storage
| Storage drive sizes supported |
2.5, 3.5 " |
| Optical drive type |
DVD Super Multi |
Motherboard
| Supported processor frequency (max) |
3.4 GHz |
Processor
| Processor boost frequency |
3.5 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
45 W |
| Processor cores |
4 |
| Built-in processor |
N |
| Processor frequency |
2.6 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
N |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Expansion slots
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
2 |
| PCI Express slots version |
3.0 |
Audio
| Audio output channels |
7.1 channels |
Ports & interfaces
| Number of SATA III connectors |
6 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| COM ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Power
| Number of power supply units |
1 |
| Power supply |
600 W |
| Power supply type |
Internal power supply unit |
Packaging content
| Keyboard supplied |
Y |
| Mouse included |
Y |
Software
| Operating system language |
ITA |
Additionally
| Chipset |
Intel Z170 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

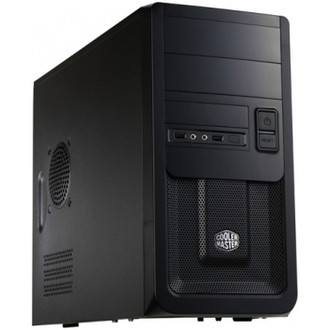

ISY ISYWZ170-600-16GB-1TB-W10. Motherboard chipset: Intel Z170, Processor socket: BGA 1440, Compatible processor series: Celeron,Core i3,Core i5,Core i7,Pentium. Processor family: 6th gen Intel® Core™ i7, Processor frequency: 2.6 GHz, Processor model: i7-6770HQ. Storage drive sizes supported: 2.5,3.5", Storage drive interface: Serial ATA, Serial ATA III, RAID levels: 1, 5, 10. Memory slots type: DIMM, Maximum internal memory: 64 GB, Supported memory clock speeds: 2133,2400,2600,2666,2800,2933,3000,3100,3200,3300 MHz. Audio output channels: 7.1 channels
