Ports & interfaces
| Host interface |
USB |
| Internal |
N |
| USB ports quantity |
1 |
Networking
| Modulation |
16-QAM, CCK, 64-QAM, DQPSK, OFDM, BPSK, DSSS, DBPSK, QPSK |
| Frequency band |
2.412- 2.4835/ 4.915- 5.850 GHz |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| Wi-Fi |
Y |
Power
| Input voltage |
5 V |
| USB powered |
Y |
Performance
| Mac operating systems supported |
Y |
| Hot-swap |
Y |
System requirements
| Internet connection required |
Y |
| Mac compatibility |
Y |
Other features
| Power LED |
Y |
| Link/Act LED |
Y |
Antenna
| Transmit power |
13 - 15 dBmW |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN connection |
N |
| Transfer rate (Mbps) |
5000 Mbit/s |

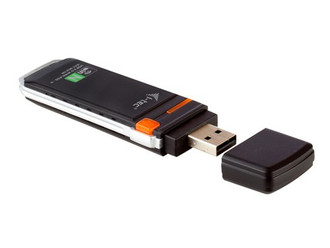

USB WLAN Dual Radio A/B/G/N Adapter
I-tec USB WLAN Dual Band a/b/g/n adapter allows you to connect you laptop or desktop not only to 802.11 b/g network, but also to wireless network based on 802.11 a/n standards. This product should not miss on any network for its great features and easy installation. It can simultaneously work in 2.4 GHz and 5 GHz WL frequence, 2T2R MIMO. In both of these frequencies can independently transmit data at rate up to 300Mbps, so total supports the transfer rate up to 600Mbps. Adapter is able to work as WLAN client and as AP simultaneously in Dual mode.
- Automatic selection of data rate 1, 2, 5.5, 11, 54, 150 or 300 Mbps, support of 2T2R MIMO technology.
- Total transfer rate up to 600Mbps
- Range up to 300m with direct visibility to opposite station or to Access Point.
- Supports modes point-to-point (Ad-Hoc, Ad-Hoc 802.11a/b/g/n) and point-to-multipoint (Infrastructure).
- After installation it can work on one MAC interface as a client and on the second one as Access point 802.11 a/b/g/n with PC/NB, which is connected to an Ethernet network.
- No additional costs for building cabling.
- Supports WEB encryption (64-bit, 128-bit), WPA/WPA2 and WPA-PSK/WPA2-PSK, WPS.
- Supports Plug and Play.
- Easy installation under Windows 2K/XP/VISTA/7 , Linux, Mac OS X.
