Wireless LAN features
| WLAN data transfer rate (max) |
150 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
| Modulation |
OFDM, DQPSK, DBPSK, CCK, 64-QAM, 16-QAM |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| xDSL connection |
N |
| Input current |
0.3 A |
| Frequency range |
2.4-2.4835 GHz |
| Input voltage |
100-240 V |
| Input frequency |
50/60 Hz |
| Bandwidth |
2.4835 GHz |
| USB ports quantity |
1 |
Protocols
| DHCP server |
N |
| DHCP client |
N |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
W-POINT 3G, IEEE 802.11n(Draft 2.0), IEEE 802.11g, IEEE 802.11b, 1x USB, 1x 10/100M RJ45

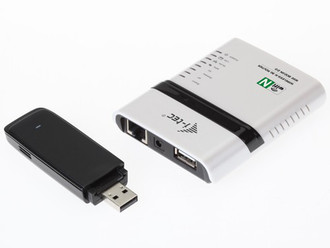

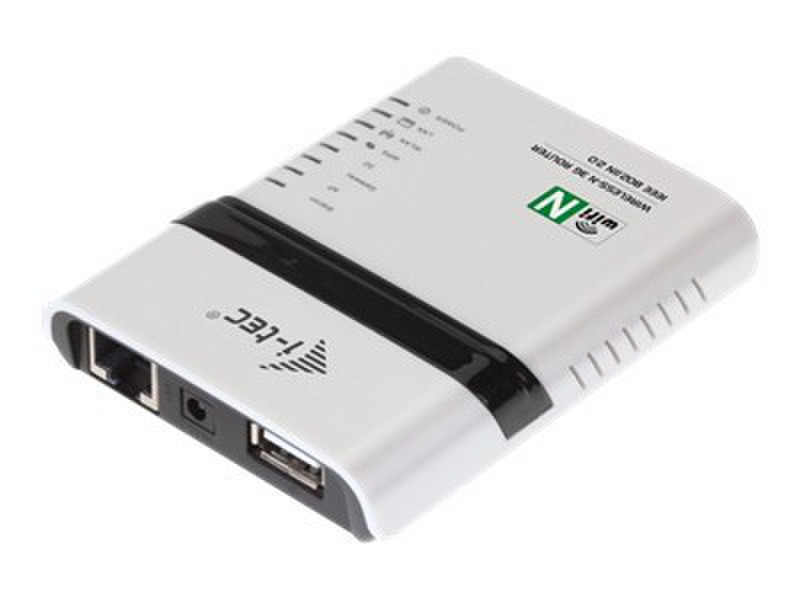

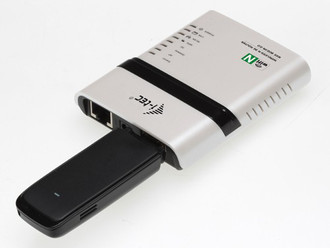

i-tec W-POINT 3G is a combined Wifi/Ethernet/3G router, which supports IEEE 802.11n (Draft 2.0) standard with transfer rate up to 150Mbit/s. It includes 2x internal antenna for a WiFi connection in accordance with MIMO and SST technology, 1x 10/100Mbps port for connection to a DSL / Cable modem or Ethernet network and one USB port for connecting a USB 3G modem (CDMA2000 EVDO, TD-SCDMA, HSDPA/WCDMA technology) to 3G network. Just by connecting 3G USB modem from your mobile operator you can share high-speed mobile Internet access either at home, at work or on vacation.
- 3G Wireless Router Mode: Ethernet port and WiFi interfaces are in LAN network and USB 3G modem provides a connection to the Internet
- Wireless Router (Gateway) Mode: Ethernet port is connected to the WAN (DSL / Cable Modem), Wireless LAN interface operates in a network
- Wireless AP Mode: Wireless interface is an Access Point and Ethernet port is in LAN network
- Wireless Client (Station) mode: Wifi interface is a WAN port to another wifi network and ethernet port is in LAN network.
The router also supports on-demand dialing, online access management, virus protection, UPnP, DDNS, advanced access logging, bandwidth limits for individual users.
