Management features
| Multicast support |
Y |
| MIB support |
RFC 1155, RFC 1157, RFC 1212, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1724, RFC 1905, RFC 1981, RFC 2011, RFC 2012, RFC 2013, RFC 2096, RFC 2287, RFC 2460, RFC 2464, RFC 2570-2575, RFC 2576, RFC 2578, RFC 2579, RFC 2665, RFC 2819, RFC 2863, RFC 2922, RFC 2925, RFC 3413, RFC 3415, RFC 3484, RFC 3621, RFC 4188, RFC 4213, RFC 4291, RFC 4363, RFC 4443, RFC 4861, RFC 4862 |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
16000 entries |
| Store-and-forward |
Y |
| Switching capacity |
64 Gbit/s |
| Jumbo frames |
9216 |
| Number of VLANs |
4093 |
| Throughput |
47 Mpps |
Performance
| Processor frequency |
1250 MHz |
| Memory type |
DRAM |
| Virtual stacking (units) |
4 |
| Internal memory |
2000 MB |
| Flash memory |
2000 MB |
| Built-in processor |
Y |
| Stackable |
Y |
Security
| Authentication |
MAC-based authentication, Port-based authentication |
| Access Control List (ACL) |
Y |
Networking
| Port mirroring |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Tagged VLAN |
Y |
| Link aggregation |
Y |
| IP routing |
Y |
| Spanning tree protocol |
Y |
| Port-based VLAN |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| 10G support |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
12 |
| SFP+ module slots quantity |
2 |
| Console port |
USB |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Design
| Safety |
UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS EN 60950-1, CB-IEC60950-1, EN 60825-1 |
| Electromagnetic compatibility |
FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, EN 55024, EN 300386, CE |
| Rack mounting |
Y |
| Form factor |
1U |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Power
| Power consumption (max) |
20 W |
| Power supply included |
Y |
Operational conditions
| Non-operating altitude |
1524 - 4877 m |
| Operating altitude |
0 - 1524 m |
64 Gbps, 47 Mpps, 1.25 GHz, 2 GB, 12x 10/100/1000BASE-T, 2x 1/10GbE SFP/SFP+, 279 x 44 x 239 mm

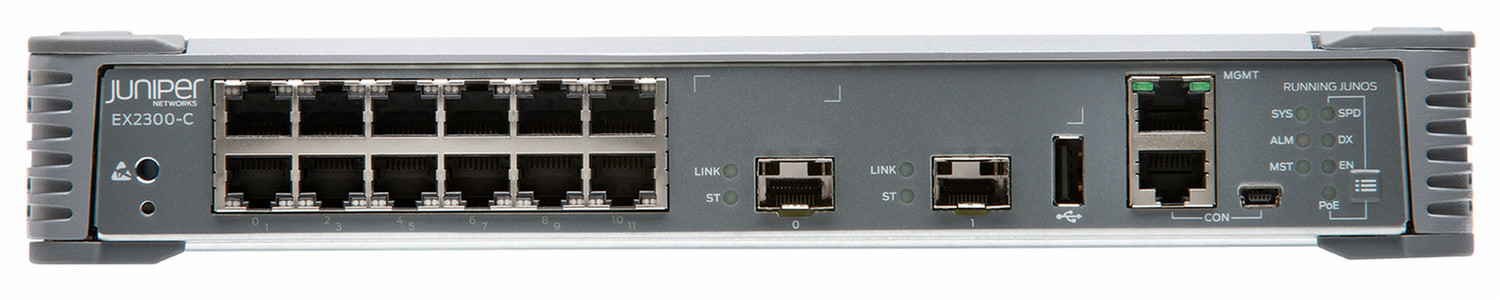

EX2300 and EX2300-C Ethernet Switches deliver a compact, high-density, cost-effective solution for small network environments where space and power are at a premium. Featuring a small, 1U footprint, the EX2300 and EX2300-C are ideal for access-layer deployments in micro branches, retail and workgroup environments, and converged network access in larger networks.
The EX2300 offers 24 10/100/1000BASE-T ports in a single platform, while the EX2300-C offers 12 10/100/1000BASE-T ports. Both models are available with or without IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering attached network devices. Optional front panel 10GbE uplink ports support connections to higher-layer devices.
Both models support Juniper’s unique Virtual Chassis technology, enabling up to four of the switches to be interconnected and managed as a single device. Both models can also act as satellite devices in a Juniper Junos Fusion Enterprise deployment, which combines large numbers of access switches into a logical management platform.
