Management features
| Multicast support |
Y |
| ARP inspection |
Y |
| MIB support |
RFC 1155, RFC 1157, RFC 1212, RFC 1213, RFC 1215, RFC 1493, RFC 1643, RFC 1212, RFC 1724, RFC 1905, RFC 1981, RFC 2011, RFC 2012, RFC 2013, RFC 2096, RFC 2287, RFC 2328, RFC 2460, RFC 2464, RFC 2570-2575, RFC 2576, RFC 2578, RFC 2579, RFC 2665, RFC 2819, RFC 2863, RFC 2922, RFC 2925, RFC 3413, RFC 3621, RFC 3810, RFC 4188, RFC 4213, RFC 4291, RFC 4363, RFC 4443, RFC 4861, RFC 4862, RFC 5643 |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
32000 entries |
| Store-and-forward |
Y |
| Switching capacity |
336 Gbit/s |
| Jumbo frames |
9216 |
| Number of VLANs |
4093 |
| Throughput |
250 Mpps |
Performance
| Processor frequency |
1000 MHz |
| Memory type |
DRAM |
| Noise level |
35 dB |
| Virtual stacking (units) |
10 |
| Internal memory |
2000 MB |
| Built-in processor |
Y |
| Stackable |
Y |
| Flash memory |
2000 MB |
Security
| Authentication |
MAC-based authentication, Port-based authentication |
| Access Control List (ACL) |
Y |
Networking
| Port mirroring |
Y |
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| IP routing |
Y |
| Spanning tree protocol |
Y |
| Port-based VLAN |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| 10G support |
Y |
Power
| Number of power supply units |
1 |
| Power consumption (max) |
120 W |
| Power supply included |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| SFP+ module slots quantity |
4 |
| QSFP+ module slots quantity |
2 |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-T, 10BASE-T |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Design
| Safety |
UL-UL60950-1, C-UL CAN/CSA 22.2 No.60950-1, TUV/GS to EN 60950-1, CB-IEC60950-1, EN 60825-1 |
| Form factor |
1U |
| Rack mounting |
Y |
| Electromagnetic compatibility |
FCC 47CFR 15 A, EN 55022 A, ICES-003 A, VCCI A, AS/NZS CISPR 22 A, CISPR 22 A, EN 55024, EN 300386, CE |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Operational conditions
| Non-operating altitude |
3048 - 4877 m |
| Operating altitude |
0 - 3048 m |

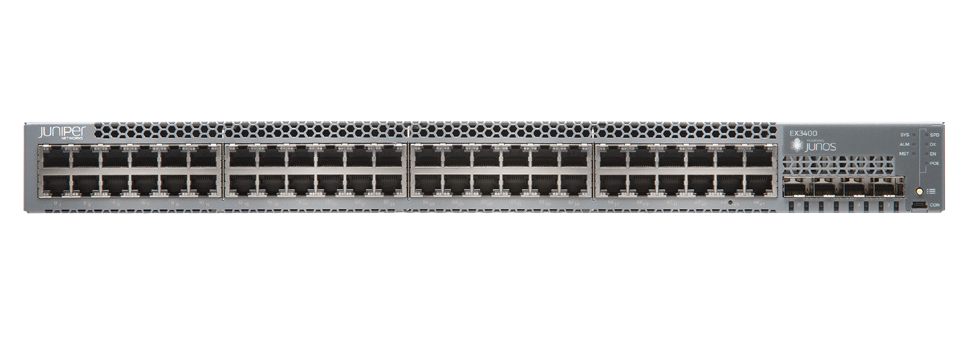

336 Gbps, 250 Mpps, 1 GHz, 2 GB, 48x 10/100/ 1000BASE-T, 4x 1/10GbE SFP/SFP+, 2x 40GbE QSFP+, 442 x 44 x 350 mm
EX3400 Ethernet Switches are a cost-effective solution for today’s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
Featuring models offering either 24 or 48 10/100/1000BASE-T ports, the EX3400 switches also support IEEE 802.3af Power over Ethernet (PoE) or 802.3at PoE+ for powering networked telephones, video cameras, wireless LAN access points, and other IP devices. Four front-panel dual-mode (GbE/10GbE) SFP/SFP+ uplink ports and two 40GbE QSFP+ ports are also available for connecting the switches to upstream devices.
The EX3400 supports Juniper’s unique Virtual Chassis technology for interconnecting up to 10 switches that can be managed as a single device. The EX3400 can also be configured as a satellite device in a Junos Fusion Enterprise deployment, which aggregates large numbers of access switches into a logical management platform.
