Data transmission
| MAC address table |
24000 entries |
| Number of VLANs |
4096 |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
1.488 Gbit/s |
| Maximum data transfer rate |
960 Gbit/s |
Performance
| Processor frequency |
1500 MHz |
Ports & interfaces
| Copper ethernet cabling technology |
10GBASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-CX4, 1000BASE-TX, 10BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
1 |
Operational conditions
| Non-operating altitude |
0 - 4877 m |
| Operating altitude |
0 - 3048 m |
Other features
| Connectivity LEDs |
Y |
| Input frequency |
60 Hz |
Management features
| Quality of Service (QoS) support |
Y |
Networking
| DHCP server |
Y |
| 10G support |
Y |
| Full duplex |
Y |
Power
| Input voltage |
110 - 220 V |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

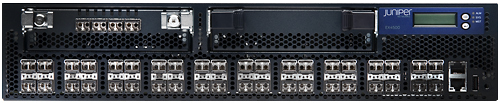

EX4500 Ethernet Switch, 960 Gbps (full duplex), 714 Mpps
Featuring 48 wire-speed 10-Gigabit Ethernet (10GbE) ports in a two rack unit (2U) platform, the Juniper Networks EX4500 Ethernet Switch delivers Layer 2 and Layer 3 connectivity to networked devices such as servers and other switches. The EX4500 base switch provides 40 fixed 10GbE pluggable ports that can also support GbE connectors for added flexibility. Two optional high-speed uplink modules offer four additional 10GbE small form-factor pluggable transceiver (SFP+) ports each for connecting to upstream devices.
By targeting high-density 10GbE top-of-rack and aggregation deployments in the data center, campus, and service provider environments, EX4500 switches perfectly complement the Juniper Networks EX Series Ethernet Switch product family: the Juniper Networks EX2200 line and EX3200 line designed for low-density access deployments; the EX4200 line designed for data center and campus GbE access and aggregation deployments; and the EX8200 line of Ethernet switches designed for data center and campus core and aggregation environments.
