Other features
| Throughput |
120 Gbps |
| Maximum data transfer rate |
2600 Gbit/s |
| Ports per chassis maximum |
3 |
| Input voltage |
200 - 240 V |
Ethernet LAN features
| Cabling technology |
10/100/1000BASE-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Security
| VPN support |
Y |
| MAC address filtering |
N |
Operational conditions
| Non-operating relative humidity (non-condensing) |
5 - 90% |
| Operating temperature (T-T) |
32 - 104 °F |
| Operating altitude |
0 - 4000 m |
Certificates
| Safety |
CAN/CSA-22.2 No. 60950-00/UL 1950, EN 60825-1, EN 60950 |
Management features
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
N |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
IPv4/v6 |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
MX960, 3D Universal EDGE Router, 2.6 Tbps, 120 Gbps per slot
Ethernet is rapidly becoming the technology of choice for both enterprises and service providers looking to provide connectivity and intelligent services. While in some respects the requirements may be different, today’s advanced services are dictating that both enterprises and service providers build networks that meet increasingly stringent requirements regarding quality of service (QoS), network performance and availability.
In addition to these basic requirements, service providers seeking to provide a differentiated user experience are finding they must scale their networks to support increasingly higher amounts of bandwidth, services and subscribers. Scaling the network in these three dimensions will be critical to securing competitive differentiation for the next generation of services.
Scalability is further enhanced by the ability to interconnect and manage multiple chassis as a single, logical device, improving operational efficiency while lowering TCO.
Juniper Networks MX Series 3D Universal Edge Routers are the only routers designed to provide the 3D scaling necessary to address today’s advanced Ethernet requirements. Powered by Juniper Networks Junos operating system and high-performance silicon such as the I-Chip and Junos Trio chipset, the MX Series enables service providers and enterprises to adapt to—and profit from—Ethernet services in a changing market.

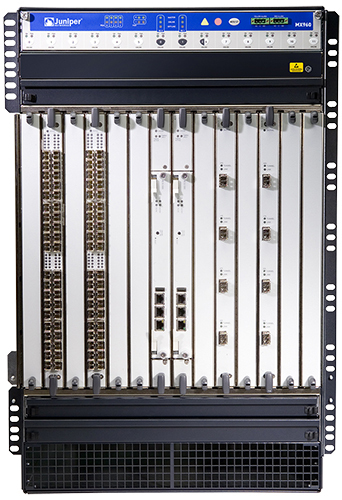

MX960 3D Universal Edge Router
Juniper Networks MX960 3D Universal Edge Router is a high density Layer 2 and Layer 3 Ethernet platform designed for deployment in a number of enterprise and service provider Ethernet scenarios. For service providers, the wide range of Universal Edge applications supported by the MX960 include VPLS services for multi-point connectivity, Virtual Leased Line for point-to-point services, full support for MPLS VPNs throughout the Ethernet network, Ethernet aggregation at the campus/enterprise edge, and Ethernet aggregation at the multiservice edge. In the enterprise, the MX960 can be used for campus and data center core and aggregation as well as a WAN Gateway.
The MX960 router is ideal for large applications requiring predictable performance for feature-rich infrastructures. In addition, this platform is ideal where SCB and RE redundancy are required. All major components are field replaceable, increasing system serviceability and reliability, and decreasing mean time to repair.
