Other features
| Authentication method |
SSH, RADIUS, X.509, SSH2, LDAP |
| Compliance industry standards |
IEEE 802.1Q, IEEE 802.1x, X.509 |
| Networking features |
10Base-T/100Base-TX |
| Interface |
RS232C |
| Special features |
VoIP: H.323, MGCP, SCCP, SIP |
Performance
| Heat dissipation |
122.8 BTU/h |
| Concurrent connections |
8000 |
Protocols
| Supported network protocols |
NetBEUI/NetBIOS, L2TP, IPSec, PPPoE |
| Data link protocols |
Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, FRF.15, FRF.16 |
| Management protocols |
SNMP 2, SNMP, Telnet, HTTP, HTTPS |
| Routing protocols |
OSPF, RIP-2, BGP, RIP-1 |
Data transmission
| VPN throughput |
40 Mbit/s |
| Firewall throughput |
90 Mbit/s |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |
| Wireless technologies |
Wired |

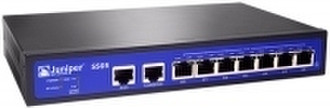

SSG5 with 128 MB Memory, RS232 Serial backup interface, 10 users
Product Description
The Juniper Networks® SSG5 and SSG20 Secure Services Gateways are high- performance security platforms for small branch office and standalone businesses that want to stop internal and external attacks, prevent unauthorized access and achieve regulatory compliance. Both the SSG5 and SSG20 deliver 160 Mbps of stateful firewall traffic and 40 Mbps of IPsec VPN traffic.
Security: Protection against worms, viruses, trojans, spam, and emerging malware is delivered by proven unified threat management (UTM) security features that are backed by best-in-class partners. To address internal security requirements and facilitate regulatory compliance, the SSG5 and SSG20 both support an advanced set of network protection features such as security zones, virtual routers and VLANs that allow administrators to divide the network into distinct secure domains, each with its own unique security policy. Policies protecting each security zone can include access control rules and inspection by any of the supported UTM security features.
