Antenna
| Antenna connector type |
R-SMA |
| Antennas quantity |
4 |
Power
| Power over Ethernet (PoE) |
Y |
Performance
| Frequency band |
2.4 - 5.5 GHz |
| 5 GHz |
Y |
| Transmitting power |
18 dBmW |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Modulation |
OFDM, DSSS |
| 2.4 GHz |
Y |
| Quality of Service (QoS) support |
Y |
Other features
| Safety |
IEC 60950-1, IEC 60950-22, UL-2043, EU EMC, R&TTE EU |
Security
| Authentication method |
802.11i, PMK Caching, AES, TKIP |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
1000 Mbit/s |

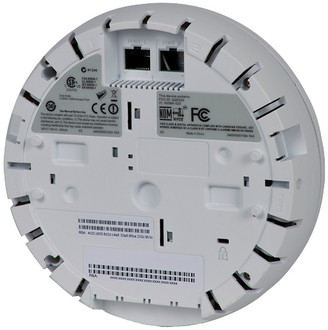

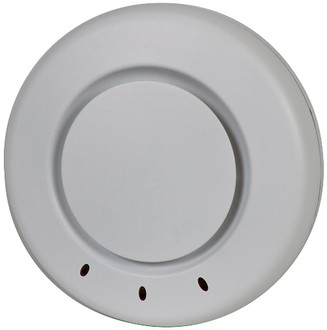

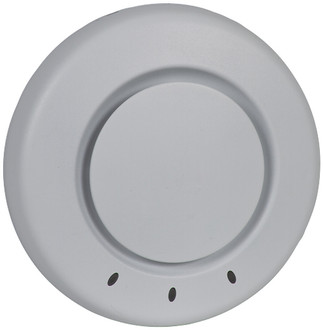

WLA522E-IL - Plenum-rated w/ dual radios 802.11a/b/g/n 2x2 MIMO, 1x 1000BASe-T 802.3af Poe
This dual-radio, 2x2 MIMO, 802.11n, indoor wireless access point is for high-density enterprise installations requiring maximum capacity. It optimizes traffic flow, reduces latency, can be a high-speed mesh access point, mesh portal, or wireless distribution system (WDS) bridge to extend WLAN coverage.
Each of its two radios (2.4GHz/5.5GHz) supports two transmit chains and two receive chains, and four built-in antennas create omni-directional coverage. A 1GbE port with auto-negotiation mode, is compatible with 802.3af and 802.3at PoE infrastructure
The WLA522 detects rogues and intrusions, as well as denial-of-service (DoS) attacks. ActiveScan scans all 802.11 channels and SentryScan enables the WLA522 to be a dedicated sentry that provides non-stop scanning.
The WLA522 can troubleshoot interference with typical RF scanning enhanced by the its ability to gather spectrum intelligence while providing access or as a dedicated spectrum sensor.
