Power
Input current |
3 A |
Input voltage |
5 V |
Ports & interfaces
Video ports quantity |
5 |
Video port type |
HDMI |
DC-in jack |
Y |
Additionally
Ethernet LAN (RJ-45) ports quantity |
8 |

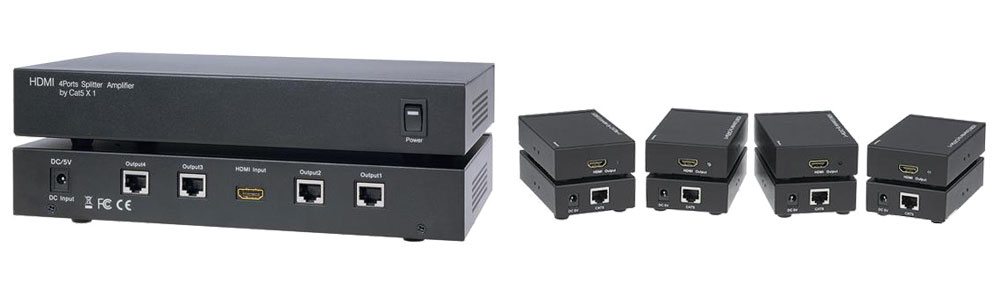

HDMI 1x4 Splitter with CAT5e/6 Outputs
The KanexPro 1x4 HDMI splitter is a one transmitter and four receivers set amplifier that, enables HDMI or DVI signals to be routed over distances up to 100ft.(30m) significantly beyond the capability of standard HDMI and DVI cables. When connected together using four economical and installer friendly CAT5e/6 cables, the transmitter inputs the HDMI signal into four identical outputs carrying 100ft./1080p resolution simultaneously from the provided receivers.
This HDMI amplifier offers an ideal, cost effective means for extending digital video, multichannel audio, and control signals from HDMI or DVI-equipped devices. Each receiver works with the splitter as a full functional unit enabling full 1920 x 1080p/60 resolution. This professional HDMI to CAT5e/6 splitter is optimized for a variety of installation environments including digital signage, classroom and medical imaging markets.
<b>Please note:</b>
To reduce video dropout problems from lighting, ceiling fans and other EMI issues, it is strongly recommended that you terminate shielded CAT5e/CAT6 and use shielded RJ45 connectors with our splitter products. "EZ end" connectors are not recommended for use with HDMI extenders.
<b>features</b>
- Distribute HDMI over Single Cat5/6 - High Resolution audio and video
- Includes 4-independent receivers
- Supports data rates up to 1.65 Gbps per channel
- Supports full HD 1080p (1920 x 1080@60Hz)
- Computer resolution up to WUXGA (1920 x1200@60Hz)
- Supports 5.1, 7.1 Digital Audio and uncompressed LPCM
- HDCP compliant
- Full EDID support
- Supports 8-bit per channel (24bit all channel) Deep color
- Metal enclosure
- Easy installation and set up
