Security
| Firewall security |
SPI |
| Authentication method |
Password |
| VPN support |
IPSec, PPTP, L2TP |
| Firewall |
Y |
| Security algorithms |
64-bit WEP, 128-bit WEP, AES, TKIP, WPA-PSK, WPA2-PSK |
| Filtering |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
Networking
| Port forwarding |
Y |
| Routing protocols |
RIP-1, RIP-2 |
| Guest access |
Y |
| Network address translation (NAT) |
Y |
| Management protocols |
FTP, HTTP, Telnet |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Software
| Linux operating systems supported |
Y |
| Mac compatibility |
Y |
| Mac operating systems supported |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| WPS push button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
1200 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
900 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Design
| LED indicators |
Activity, LAN, Power, WLAN, WPS |
| Wall mountable |
Y |
WAN connection
| Ethernet WAN |
Y |
| 3G/4G USB modem compatibility |
N |
| DSL WAN |
N |
| SIM card slot |
N |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
4 |
Performance
| Built-in processor |
Y |
| Memory card slot(s) |
N |
System requirements
| Minimum RAM |
64 MB |
| Minimum processor |
MT7628A+MT7612E |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
802.11ac/a/b/g/n, 1200Mbps, 2.4/5GHz, 1x WAN , 4x LAN, RJ45, 8MB Flash, 64MB RAM, White

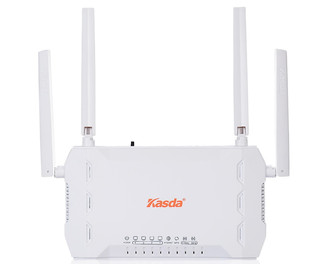

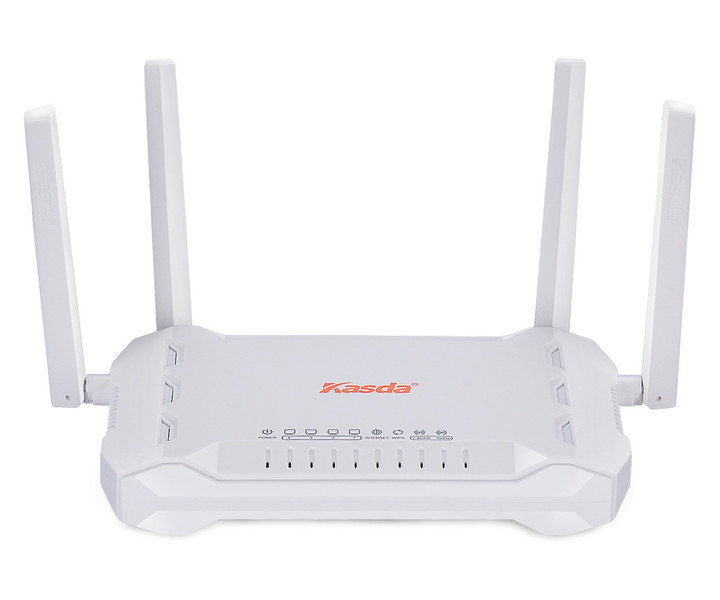

KW6515 with 4 external antennas and 11ac standard Wi-Fi router supports high speed, high stability, Quality of Service (QoS), parent control and extensive firewall protection to enable a home or small office all connected to the Internet at the lowest cost.
- Compliant with 802.11b/g/n/ac, wireless speed up to 1200Mbps
- WPS Security – Offers one button security
- Parental control － Web filtering for all your connected devices
- QoS – Network priority can be determined
- IPv6 – Support next generation network
- Multi-antenna – 4 external antennas to deliver the best wireless signal, fully expanded coverage
- Advanced security – WPA/WPA2 encryption. Keep your wireless network safely connected
- Fast Ethernet Port – 1 Fast Ethernet port for WAN connection and 4 Fast Ethernet ports for wired LAN connection
