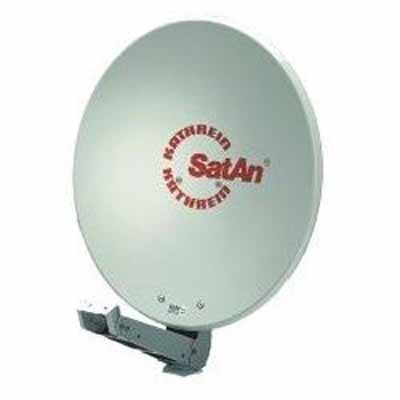

Kathrein CAS 09 White satellite antenna

Kathrein CAS 09 White satellite antenna

MPN: 216083
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Weight & dimensions

Height (max) 815 mm
Diameter 987 mm
CAS 09 parabolic antenna The parabolic antenna CAS 09 are exclusively destined for:
– reception of satellite signals
– utilisation as a domestic antenna. A domestic or private antenna is defined acc. to DIN 4131 as an
antenna with a free mast length of 6 m and a bending moment at the fixing point of up to 1650 Nm.
– installation on buildings not subject to oscillations
It is important to observe the maximum load as mentioned in the technical data. If that value is
exceeded, antenna parts can break loose.
The parabolic antennas CAS 09, CAS 90, CAS 90/R can be equipped with
- one feed system (LNB) for reception of signals from satellites occupying the same orbital position
- two feed systems for multifeed reception from satellites being 3°-4° or 6° apart
With the aid of the additionally available multifeed adapter plate ZAS 90, three feed systems can be fixed on the parabolic antenna. Neither the feed systems nor the mounting instructions for the feed systems are in the scope of supply of the antenna.
