Data transmission
| MAC address table |
1256 entries |
| Supported data transfer rates |
10/100/1000Mbps |
| Switching capacity |
0.95 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| VLAN support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Power
| Number of power supply units |
1 |
Protocols
| Data link protocols |
NAT, POP3, SMTP |
| Supported network protocols |
HTTP/HTTPS, TCP/UDP, IPv6/IPv4, IMAP, NNTP, Telnet, RDP |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
4 |
Design
| Case design |
Built-in |
| Form factor |
1U |
| Rack mounting |
Y |

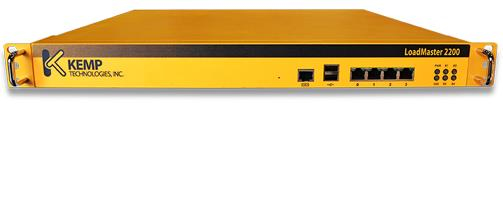

LoadMaster LM-2200 - 4x Gigabit Ethernet, L4 0.95Gbps, L7 0.92Gbps, 1GB RAM, USB, VGA, 1U
LM-2200 Server Load Balancer
The LoadMaster 2200 is our entry level load balancer supporting the common feature set of all LoadMaster models. LM-2200 is focused on the best mix of price and performance and features:
- 4 X GbE ports
- 950Mbps L4 balancer throughput
- SSL Transactions Per/Second (TPS): 200
- Servers Supported: 1,000 Physical / 500 Virtual
- Requests per second (HTTP): 25,000
The LoadMaster 2200 Load Balancer is an affordable, yet feature rich server load balancer with integrated SSL acceleration and Layer 7 content switching; perfect for creating highly available server clusters at a ground-breaking price. The LoadMaster intelligently and efficiently distributes user traffic among web and application servers to ensure users get the best experience possible. LoadMaster 2200 gives IT administrator’s greater control, and enables them to easily adapt to network changes by providing a resource optimization layer in front of applications and servers.
The LoadMaster 2200 is an essential component of high-availability, clustering and fault tolerance, all of which provide the infrastructure for reliable applications, Internet and intranet sites. Combining the latest advancements in Layer 4 and 7 load balancing and content switching, the LoadMaster 2200 is the Load Balancer value leader for optimizing IT web and application infrastructure. The LoadMaster 2200 optimizes web infrastructure as defined by 24/7 availability, high-performance, flexible scalability, and secure operations - while streamlining IT costs.
The LoadMaster 2200 simplifies the management of networked resources, and optimizes and accelerates user access to diverse servers, content and transaction-based systems. The LoadMaster 2200 provides an unmatched combination of availability and performance for mission-critical servers and application
