Data transmission
| Switching capacity |
8.8 Gbit/s |
Networking
| VLAN support |
Y |
| Full duplex |
Y |
| 10G support |
Y |
Power
| Number of power supply units |
2 |
Security
| SSH/SSL support |
Y |
| Access Control List (ACL) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| SFP+ module slots quantity |
2 |
| Console port |
USB |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Performance
| Internal memory |
8192 MB |
| Stackable |
N |
Protocols
| Management protocols |
SNMP |
| Supported network protocols |
FTP, HTTP/HTTPS, NNTP, POP3, SMTP, TELNET |
Design
| Form factor |
1U |
| Rack mounting |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
L4/L7 Load Balancer, 8.8Gbps L4 Balancer Throughput, 8x GbE ports, 2x 10GbE SFP+ ports, 2x USB2.0, 1000 Physical / 1000 Virtual Servers

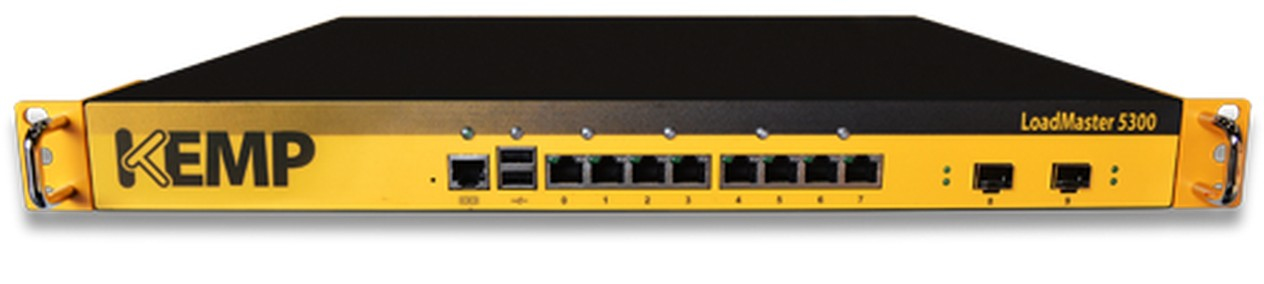

LM-5300 Server Load Balancer – The LoadMaster 5300 is our flagship "Gold Box" load balancer featuring:
- 8x GbE and 2x10GbE (SFP+) ports.
- 8.8Gbps L4 balancer throughput.
- SSL Transactions Per/Second (TPS): 9,300.
- Servers Supported: 1,000 Physical / 1,000 Virtual Servers.
- Requests per second (HTTP): 110,000.
The LoadMaster 5300 Load Balancer intelligently and efficiently optimizes application and web traffic among servers for the best possible end user experience. The LoadMaster 5300 gives IT administrator’s greater control, and enables them to easily adapt to network changes by providing a resource optimization layer in front of applications and servers.
The LoadMaster 5300 is an essential component of high availability; clustering and fault tolerance ensuring end users get the best application experience possible. The LoadMaster 5300 Load Balancer provides 99.999% high-availability, guarantees user requests will be directed to only “available” servers and “available” applications and ensures that users maintain continuous connections with the specific server where their transactional data is available – even if the IP address changes during session.
The LoadMaster 5300 provides an unmatched combination of availability and performance for mission-critical servers and applications. The LoadMaster 5300 optimizes web infrastructure as defined by 24/7 availability, high-performance, flexible scalability, and secure operations - while streamlining IT costs. LoadMaster simplifies the management of networked resources, and optimizes and accelerates user access to diverse servers, content and transaction-based systems. The LoadMaster intelligently and efficiently distributes web and application traffic among servers so that your users get the best experience possible.
