Video
| Playback resolutions supported |
800x600, 1024x768, 1280x1024, 1440x900, 1920x1080 |
| Analog signal format system |
NTSC, PAL |
| Video compression formats |
H.264 |
| Video capturing speed |
120 fps |
Networking
| Ethernet interface type |
Fast Ethernet |
| Supported network protocols |
DHCP, PPPoE, Static IP |
Packaging content
| Handheld remote control |
Y |
Hard drive
| Number of hard drives supported |
1 |
| Maximum hard drive capacity |
2000 GB |
Ports & interfaces
| RS-485 ports |
1 |
| BNC input ports |
4 |
| HDMI ports quantity |
1 |
| BNC output ports |
1 |
| VGA (D-Sub) output ports |
1 |
Technical details
| Motion sensor |
Y |
| Channels quantity |
4 channels |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

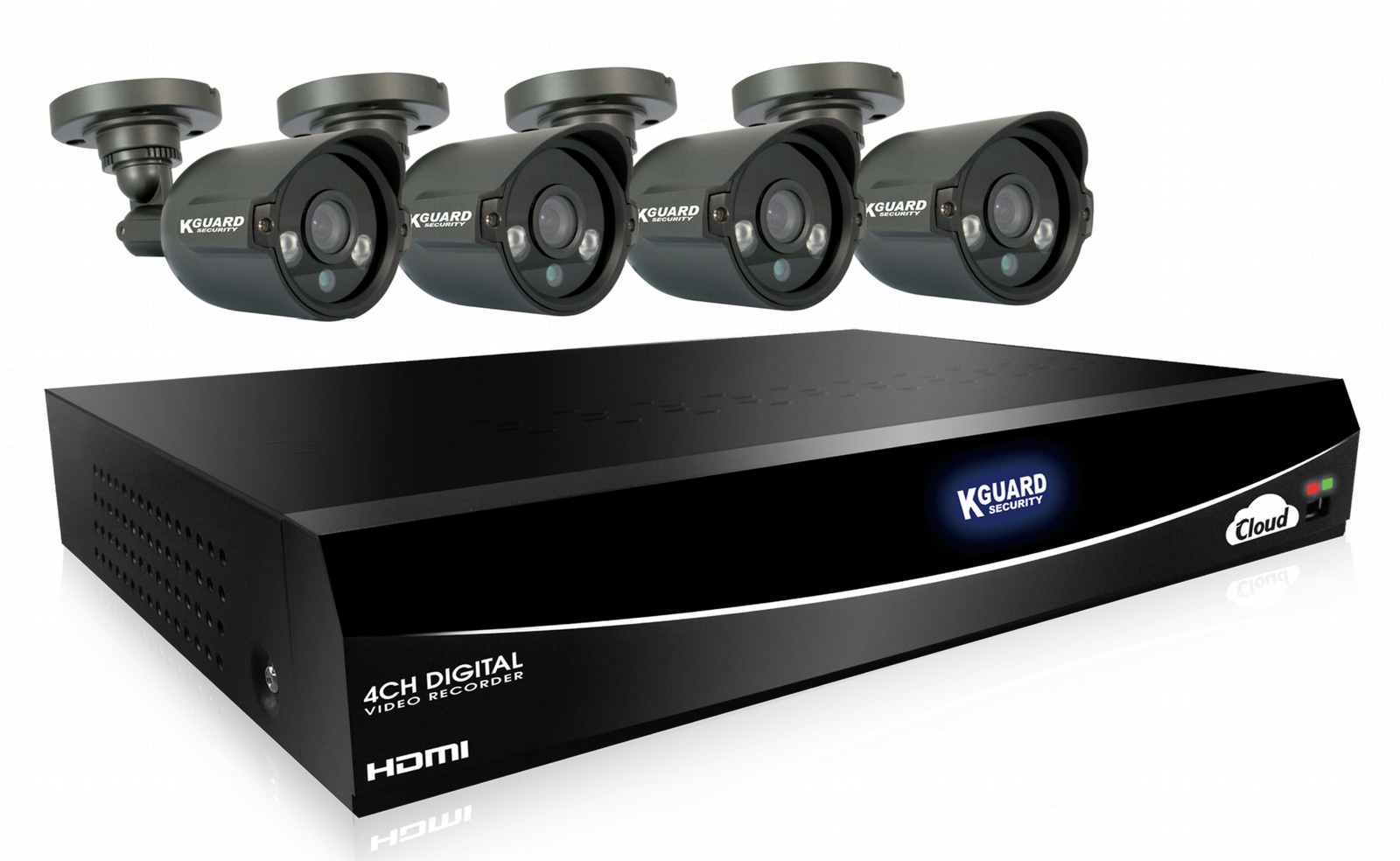

Easy Link Series Combo Kit - 4 Channels, NTSC/PAL, 1xVGA, 1xBNC, 1xHDMI, H.264, 1920x1080pix
The most important function of Easy Link Series can let customers easily connect to the internet. No network setup is required. Just plug your cable into your DVR and connect your internet without any setup. You can download KGUARD’s free app that supports smartphones and tablets and use the device to scan the QR code on your DVR. One the scan is complete, you can use your device to watch live right away without limitation. The product also includes 960H resolution, cloud service and high resolution cameras. Customers can use the product to secure their home and business easily.
In addition, another advantage of the EL Combo kits is four/eight high resolution cameras. New cameras use 600 TVL high resolution with our Kguard Fulcolor image sensor to provide you with high quality color images. The 3.6mm fixed lens with a 75 degree viewing angle helps you monitor particular areas, such as yards or warehouses. They have powerful night vision with a range of up to 65ft/20m in total darkness and have waterproof cases to protect the camera and survive rainy days.
