Lamps
| Luminous efficacy |
96 lm/W |
| Total power |
10.5 W |
| Color temperature |
4000 K |
| Bulb voltage |
24 V |
| Color Rendering Index (CRI) |
80 |
| Number of bulbs |
4 |
| Number of modules |
1 |
| Luminous flux |
1008 lm |
| Bulb type |
LED |
| Bulb lifetime |
50000 h |
Technical details
| Quantity per pack |
10 pc(s) |
| LED integrated |
Y |
Design
| Proper use |
Indoor |
| Certification |
cUL, CE |
| Product type |
Surfaced lighting spot |
| International Protection (IP) code |
IP21 |
| Plafond shape |
Rectangle |
Weight & dimensions
| Length |
37.5 mm |
| Width |
371 mm |
| Height |
16 mm |
Power
| Input voltage |
24 V |
| Power source type |
DC |
Additionally
| Operating temperature range (T-T) |
-20 - 60 °C |
| Colour of product |
White |

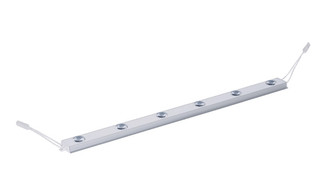

Indoor, 4000K, 1008Lm, 10 Pack
This new generation PWM dimmable Posterbox Outdoor Modules, ensures a beautiful high lumen output, low wattage and is easy to use in all your light box applications as well as traffic signs and architectural lighting. Triple A-brand high power LEDs in a robust casing provide a supreme quality and bright, uniform light.
Our Posterbox Modules are engineered specifically for the patented side lighting of light boxes and traffic signs. Nowadays, our partners see more and more usage of the Posterbox modules in architectural applications as well. With a light output of more than 1100 lm, this new Posterbox 450 series gives you 15% more light than the previous Posterbox generation while consuming the same amount of energy. With the special patented dual lens technology, this bright and even lighting solution illuminates your light box perfectly.
As our previous Posterbox series, these modules are protected against incorrect +/- installation and thermal protection via automatic dimming. All Posterbox Indoor Modules are CE and cUL approved and have a IP21 rating, which makes it a perfect lighting solution for all your indoor lighting projects.
Philips Signage Licensing program
Koledo is a partner of the Philips EnabLED and Signage license programs. We ensure that licenses are paid so you and your customer do not have to worry about later patent claims (see program for details). In short; when you buy Posterbox Modules from our special Signage Licensed pricelist, in combination with one of our approved drivers, we pay the license fee for you!
All Posterbox Indoor Modules are developed in the Netherlands.
