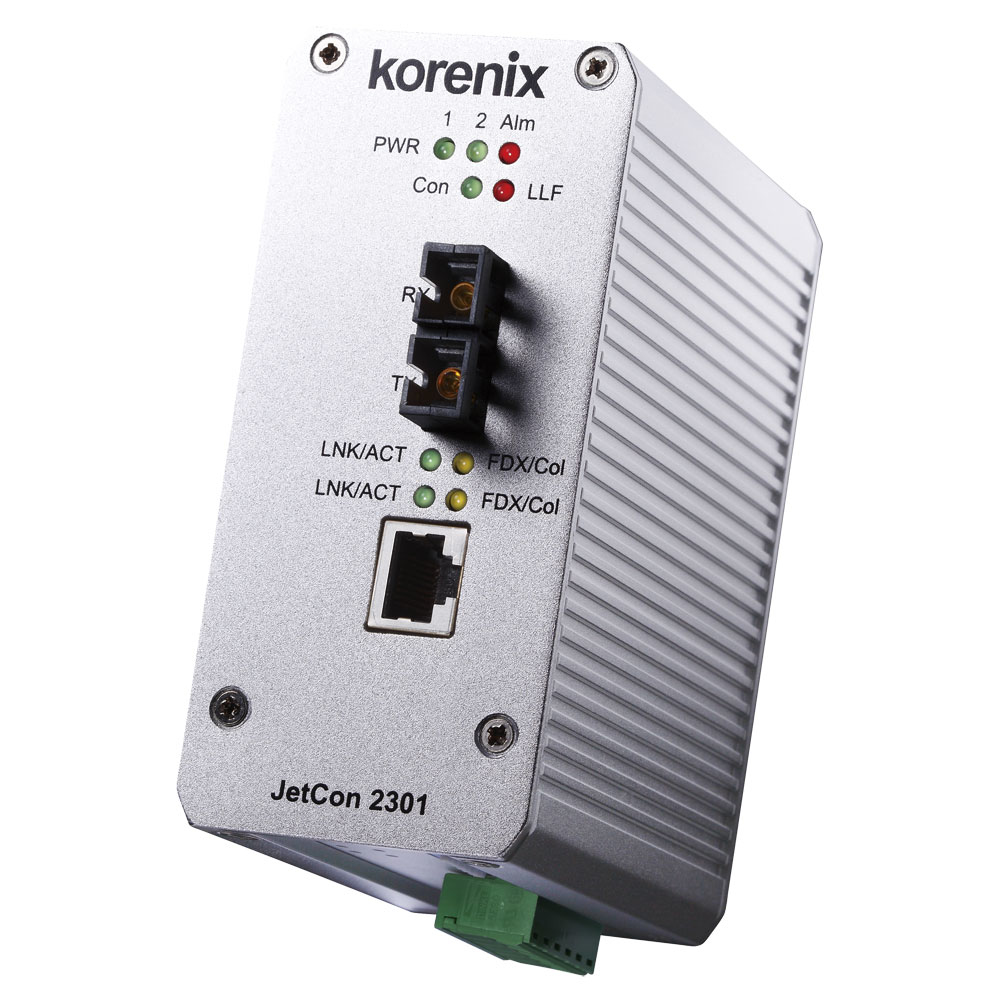

Korenix JetCon 2301-m 100Mbit/s 1310nm Multi-mode Aluminium

Name: Korenix JetCon 2301-m
Brand: Korenix

🚚 Select the country of delivery:

Delivery from:

Germany

Updating price ... 📣 Send Price inquiry Не поставляется

Delivery cost & estimated delivery time:

От

days

Sale and delivery by:

Mercatos.com

. . Imprint / ⭐ Reviews / Online Dispute Resolution Terms of Service Cancellation policy Data protection 💳 Payment Methods...

buy now I will buy itASK A QUESTION

Advertising *

Показать все предложения

See all offers

Where to buy and prices (Advertising *)

On Top

в наличии

to seller

* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Networking

Flow control support	Y
Ethernet LAN data rates	10, 100 Mbit/s
Auto MDI/MDI-X	Y
Duplex system	Half, Full
Store-and-forward	Y
Auto-negotiation	Y
Copper ethernet cabling technology	100BASE-TX, 10BASE-T

Performance

Wavelength	1310 nm
Maximum transfer distance	2000 m
Fiber mode structure	Multi-mode
Tx power (max)	-14 dBmW
Wavelength-division multiplexing (WDM)	Y
Rx power (max)	-31 dBmW
Rx power (min)	-14 dBmW
Link budget	12 dB
Tx power (min)	-19 dBmW

Ports & interfaces

Fiber ports quantity	1

Design

Internal	N
DIN rail mounting	Y

Additionally

Ethernet LAN (RJ-45) ports quantity	1
Wireless technologies	Wired
Transfer rate (Mbps)	100 Mbit/s

1 x RJ-45, 1 x SC, 2km Max, Fast Ethernet - One 10/100 TX port to One 100FX port media converter
- Supports Multi-Forwarding modes – Store and Forward, (Switching Converter) Modify Cut-through, Pure Converter and Converter with Auto Change modes
- Supports Auto MDI/MDI-X, Auto Negotiation
- Supports Multi-mode 2KM, Single-mode 30KM
- Extreme Low Data Forwarding Latency- 1.6 x 10-6 Sec
- Auto Link Loss Forwarding (LLF) for fault detection
- Fault Alert for port and power
- Redundant 10~60V DC Power inputs with DC polarity protection
- Supports AC 1.5KV Hi-Pot isolation protection
- EN 50121-3-2 Railway EMC compliance (applying)
- Operating temperature -25~75°C (-40~75°C wide operating temperature model available by request)
