Data transmission
| Switching capacity |
3.2 Gbit/s |
| Throughput |
1.49 Mpps |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Fast Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
Design
| Safety |
UL 508 |
| Rack mounting |
Y |
Networking
| Flow control support |
Y |
| 10G support |
N |

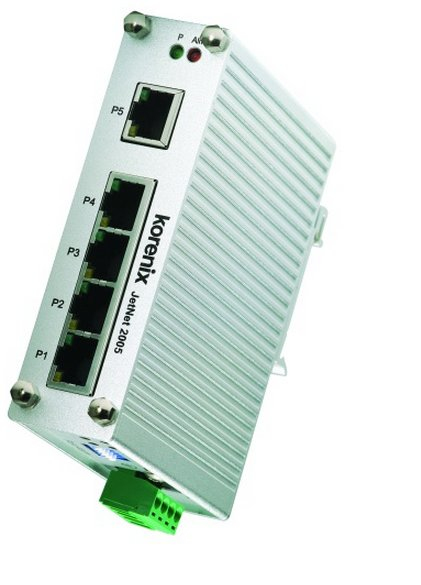

JetNet 2005, Industrial 5-port Compact Fast Ethernet Switch
Korenix JetNet 2005 is an Industrial 5-port 10/100Base-TX Ethernet switch. JetNet 2005 adopts slim industrial design to save rail space for compact systems. In order to survive under harsh environment, JetNet 2005 features an industrial-grade aluminum case with IP31 grade protection ability against dust and water. JetNet 2005 provides one relay output for port link down events, which is enabled/ disabled by the DIP switch. Moreover, JetNet 2005 has good immunity against unstable power source and can accept DC 18~32V power input by terminal block.
Plug-and-Play Switch & High-Speed Transmission
JetNet 2005 ser ies requi re no user setup and immediately start operating as soon as you power it up. Excellent data transmission performance is provided for you. No traffic will be delayed with the transmission rate up to 3.2Gbps.
Compact Size & Fault Relay Output
The slim-sized design makes it an ideal model that would physically fit in a network environment with limited space. One relay output is an important feature to let you know when there is any event of port link down. Just move up the DIP switch, the fault relay alarm will be functioning!
True Reliability for the Best Support
With the 1.5KV Hi-Pot isolation protection, CE/FCC/UL508 regulatory approvals, and 5-year global warranty, JetNet 2005 series are your reliable choice for hazardous applications.
Easy Installation & Brilliant Idea for Hazardous Environment Application
JetNet 2005 series can be easily wall mounted and mounted directly on DIN rail. The IP31 r igid aluminum f lat casing and wide operation temperature range ensure reliable operation for harsh environment. Extended operating temperature range is available for project-based request.
- 5 10/100TX Ports with Auto MDI/MDI-X
- Slim-sized for Industrial Din-rail Application
- 18~32VDC Power Input
- Relay Output for Port Alarm
- Supports AC 1.5KV Hi-pot isolation protection
- IP31 rugged aluminum case
- Operating temperature -25~70°C (-40~75°C wide temperature model available by request)
