Ports & interfaces
| Audio connections |
Y |
| DC-in jack |
Y |
| Console ports |
3.5mm headphone, DVI-I, PS/2, USB A |
| Console USB ports quantity |
2 |
| USB connector type |
USB Type-A, USB Type-B |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
4 |
| Video port type |
DVI-I |
Video
| Maximum digital resolution |
2560 x 1600 pixels |
Certificates
| Safety |
UL/cUL60950,EN60 950; EMI/EMC: FCC Class B, CE Mark, EN55022B, VCCI |
System requirements
| Mac operating systems supported |
Y |

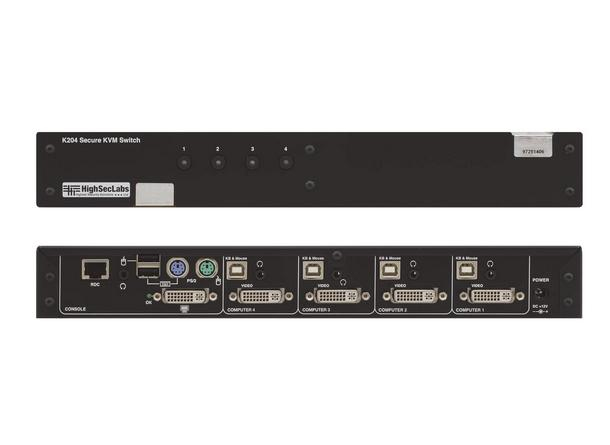

HighSecLabs Secure 4–Port, DVI–I KVM Switch
The K204 is a secure 4−port DVI−I KVM switch. It allows users to share peripherals – keyboard, mouse and monitor – between four different security−level networks/computers. In addition to supporting DVI−I dual−link signals, The K204 supports VGA and HDMI interfaces with the use of the applicable adapters. It provides the highest possible isolation between two connected computers.
