Ports & interfaces
| Audio connections |
Y |
| Console ports |
3.5mm headphone, DisplayPort, PS/2, RJ–45, USB A |
| Console USB ports quantity |
3 |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
4 |
| Video port type |
DisplayPort |
| USB connector type |
USB Type-A, USB Type-B |
Video
| Maximum digital resolution |
3840 x 2160 pixels |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

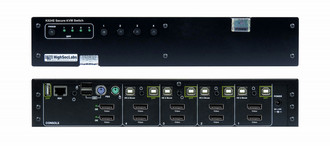

HighSecLabs Secure 4–Port, Dual–Display, DisplayPort KVM Switch
The K524E is a secure 4−port DisplayPort dual−display KVM switch. It allows users to share peripherals – keyboard, mouse and monitor – between four different security−level networks/computers. It provides the highest possible isolation between four connected computers operating in a dual display mode. An RDC port enables user−friendly, comfortable remote control of the KVM switch. For enhanced security, a USB user authentication port (DPP) connects to a smart card or biometric reader. This requires the insertion of a physical authentication card or identification of a fingerprint to access the various computers/networks.
