Kramer Electronics TBUS-10XL(B)

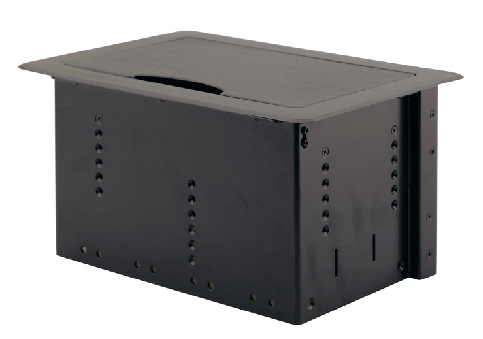

Enclosure - Black Anodized Aluminum Top The TBUS−10xl is the enclosure of a new modular system with a manually retracting lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord.

The TBUS enclosure, inner frame, power socket(s), power cord & inserts are purchased separately.
- Cover - Manually opens & closes.
- Inner Frames - T10F−22M can accommodate a combination of up to 2 power sockets, 2 inserts, 1 opening for a Kramer MegaTOOL SID−X1; T10F−33 contains 3 power sockets and 3 inserts.
- Power Sockets - 11 different "TS" single and 10 dual power socket options are available to accommodate the power requirements worldwide.
- Power Cord - 8 different "C−AC" single power cords (and 3 "Y" power cords) for each power socket. UL and CE qualified.
- Connector Depth - Adjustable.
- Installation Requirement - Table cutout of 245mm x 154mm (9.65" x 6.07").
- Dimensions - Top plate: 171.6mm x 261mm (6.8" x 10.3") W, D.
- Weight - TBUS−10xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs) approx.
- Accessories - TBUS clamps (part of the TBUS enclosure), cut−out template, template screws, self−locking ties.
- Options - Inner frames, passive wall plates and interfaces, power socket kits, power cord, T−2INSERT kit, T−RC−8IR kit, T−RC−76 kit, T−RC−78 kit, Kramer K−Able Box (furniture−mounted cable extension).
- Size - T-BUS
