Ports & interfaces
RJ-45 input ports |
1 |
RJ-45 output ports |
1 |
HDMI in |
2 |
DC-in jack |
Y |
RS-232 input ports |
1 |
Technical details
Type |
AV transmitter |
Cable types supported |
Cat5, Cat7, Cat6 |
Bandwidth |
2.25 Gbit/s |

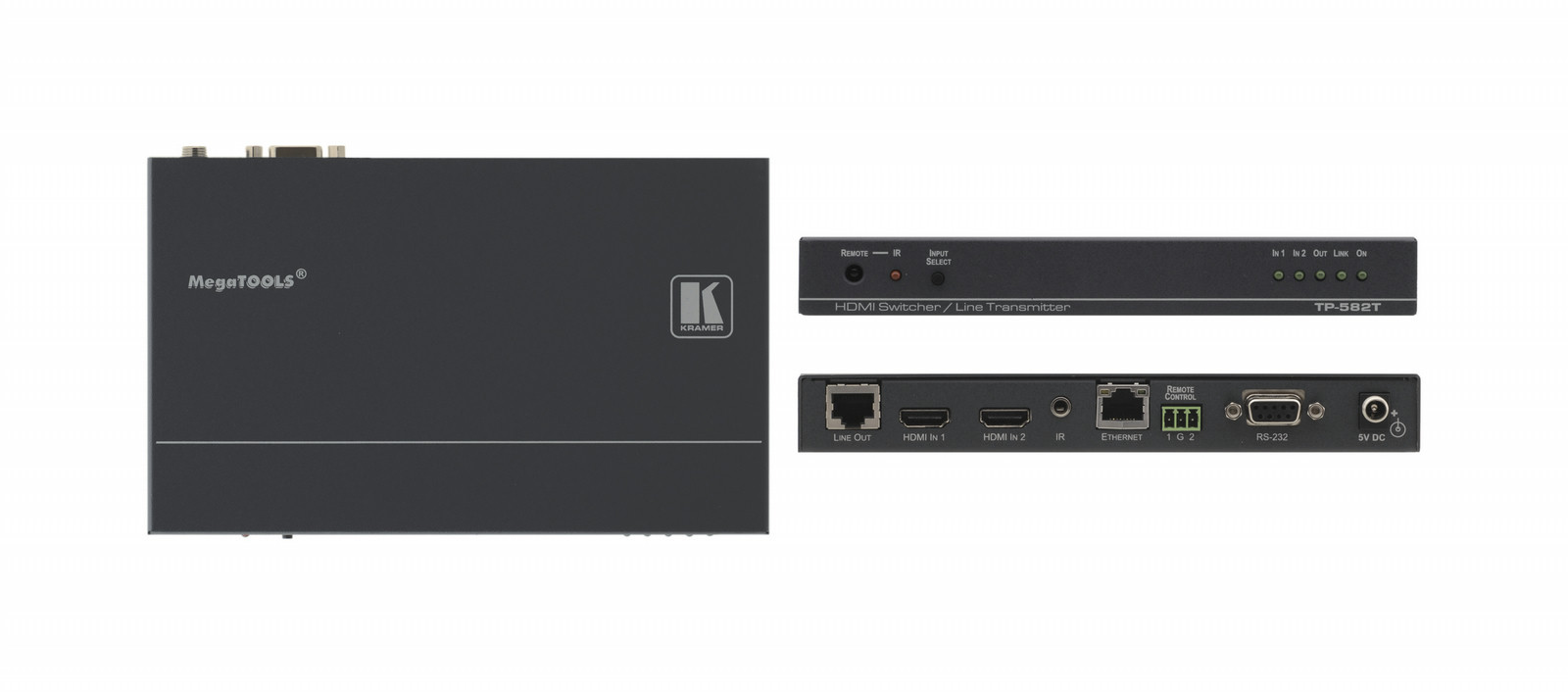

2x1 HDMI Plus Bidirectional RS−232, Ethernet & IR over HDBaseT Twisted Pair Switcher/Transmitter
The TP−582T is a high−quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS−232 and IR signals. The TP−582T selects one of two HDMI inputs, and converts it with the Ethernet 100BaseT, RS−232 and IR input signals to an HDBaseT twisted pair signal. The TP−582R converts the HDBaseT twisted pair signal back to Ethernet 100BaseT, RS−232, IR and two HDMI outputs, and de−embeds the audio to S/PDIF and TOSLINK® audio outputs.
- Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
- HDBaseT Technology.
- HDTV Compatible.
- HDCP Compliance.
- HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
- 3D Pass-Through.
- EDID PassThru - Passes EDID signals between the source and display.
- Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and control of the destination unit.
- Ethernet Interface - Passes 100BaseT.
- System Range - Signals of up to 6.75Gbps (up to 1080p@60Hz 36−bit) over a range of up to 130m (430ft) when using BC−HDKat6a cables.
- Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BCP−DGKat724 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
- Control - Front panel and contact closure switching.
- Indicators - Status LEDs for input selection, output, link and power.
- Compact MegaTOOLS® - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
