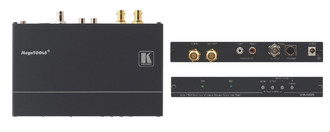

Kramer Electronics VP-505 video converter

3G HD−SDI Scan Converter, PAL, NTSC, 3Gbps, Audio-U, MegaTOOLS The VP−505 is a high−performance scan converter for digital video signals up to 3G HD−SDI. The unit de−embeds the audio to unbalanced stereo audio and down−scales the video to composite and s−Video (Y/C) simultaneously in either PAL or NTSC formats.

- Max. Data Rate - 3Gbps.
- Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M) inputs; PAL or NTSC selectable outputs.
- Looping Input - With clocking and equalization.
- Multiple Output Sizes - Full, overscan, underscan, letterbox, panscan.
- Built-In Proc Amp - Brightness, contrast, color, hue.
- Non-Volatile Memory - Saves final settings.
- Image Freeze Frame.
- Control - Front panel and OSD (On Screen Display).
- Indicators - ON and SDI signal LEDs.
- Compact MegaTOOLS™ - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
