Ports & interfaces
| BNC output ports |
1 |
| VGA (D-Sub) ports quantity |
2 |
| HDMI in |
1 |
| BNC input ports |
7 |
Technical details
| Video port type |
HDMI/DVI |
| HDMI ports quantity |
1 |
| HDCP |
Y |
2 x SD/HD/3G HD-SDI - BNC, 1 x HDMI, 2 x VGA, 2 x composite, 1 x component, 2 x DVI, 1 x S-Video, Ethernet, RS-232, 1U

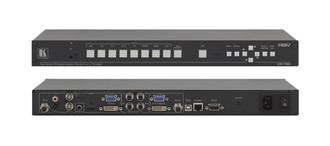

<b>8−Input ProScale™ Genlock Presentation Scaler/Switcher</b>
The VP−790 is a high−quality presentation scaler/switcher for RGB component, computer graphics, composite, s−Video, HDMI, DVI and 3G HD−SDI signals. The unit takes one of the inputs, scales the video, embeds the audio and outputs the signal to the computer graphics, DVI/HDMI and 3G HD−SDI outputs simultaneously.
- HQV Video Processing - HQV (Hollywood Quality Video) processing represents the state-of-the-art in video processing technology, with the highest quality de-interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard-definition and high-definition signals.
- Max. Data Rate - 3Gbps (3G HD-SDI).
- HDTV Compatible.
- HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output.
- Multi-Standard Operation - SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M).
- Video Warping - Uses user-generated screen coordinates to match any linear or non-linear surface.
- Edge Blending - Facilitates building large images using multiple projectors by feathering the overlapped edges.
- Video Inputs - 1 HDMI, 1 computer graphics video (15-pin HD), 2 composite video (BNC & RCA), 1 s-Video (4-pin), component video (RGBS) & 1 DVI.
- Genlock Input - Ideal for use in broadcast video applications.
- Scaled Outputs - DVI/HDMI, 3G HD-SDI & computer graphics video (15-pin HD).
- Gaming Mode Option - For minimum latency.
- Audio Output - S/PDIF de-embedded from HDMI or SDI.
- Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan.
- Built-in ProcAmp - Color, hue, sharpness, noise, contrast, and brightness.
- Front Panel Controls - OSD, front panel buttons including test pattern, PIP and Reset to XGA/720p.
- Non-Volatile Memory - Saves final settings.
- Front Panel Lockout.
- Flexible Control Options - Front panel with OSD (on-screen display), IR remote, Ethernet and RS-232.
- Worldwide Power Supply - 100-240V AC.
- Standard 19” Rack Mount Size - 1U. Rack “ears” included.
