Technical details
| Video port type |
BNC |
| Bandwidth |
2.97 Gbit/s |
Ports & interfaces
| BNC output ports |
8 |
| BNC input ports |
4 |

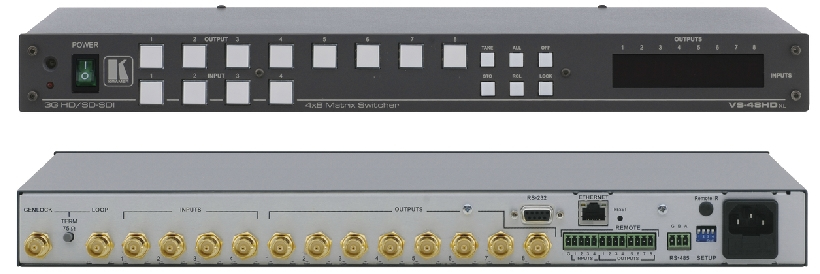

4x8 3G HD−SDI Matrix Switcher
- Max Data Rate − Up to 3Gbps.
- Looping Analog Sync.
- Control − RS−232, RS−485, Contact Closure, Ethernet & IR.
The VS−48HDxl is a high−performance matrix switcher for 3G HD−SDI video signals. Switching is implemented during the vertical interval period according to the SMPTE RP−168 standard, when using synchronized digital video sources.
- Max. Data Rate - 3Gbps.
- HDTV Compatible.
- Multi-Standard Operation - SDI (SMPTE 259M/344M), HD-SDI (SMPTE 292M), 3G HD-SDI (SMPTE 424M), and Dual Link HD-SDI (SMPTE 372M).
- Kramer Equalization & re-Klocking Technology - Rebuilds the digital signal to travel longer distances.
- Switching Synchronization - Synchronizes either to external reference or incoming video.
- Active Input Type Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high-definition (HD-SDI) input signal.
- Take Button - Executes multiple switches all at once.
- Multiple Memory Locations - Stores multiple switches as presets (salvos) to be recalled and executed when needed.
- Analog Sync Type - Bi-level, tri-level.
- Selectable Sync Signal Termination.
- Looping Sync Input
- Vertical Interval Switching - SMPTE RP-168.
- Front Panel Control Lockout.
- Flexible Control Options - Front Panel, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet, contact closure & IR Remote (included).
- Worldwide Power Supply - 100-240V AC.
- Standard 19” Rack Mount Size - 1U. Rack “ears” included.
