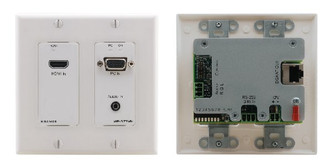

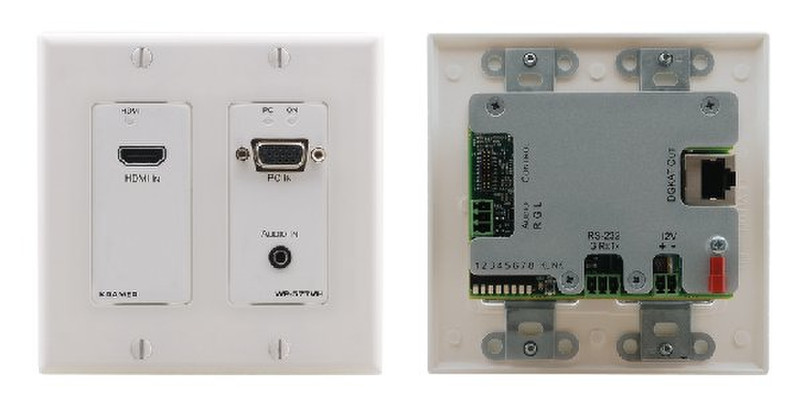

Active Wall Plate - 1x HDMI, 1x VGA 15-pin HD (F), 1x 3.5mm, 1x RJ-45
Active Wall Plate − HDMI & Computer Graphics with Bidirectional RS−232 & Stereo Audio DGKat Twisted Pair Transmitter
The WP−577VH is wall plate transmitter for HDMI and computer graphics video with unbalanced stereo audio and RS−232 signals. The unit encodes the input signals into DGKat twisted pair that it transmits to a compatible DGKat switcher or receiver.
- Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
- HDTV Compatible.
- HDCP Compliant.
- HDMI Support - x.v. Color™ and 3D.
- HPD (Hot Plug Detect) Signals - From the display device to the source.
- K-Link™ Compatibility - Uses RS−232 to control other Kramer devices and send data to remote, external RS−232 devices.
- System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
- Power Connect™ System - A single connection to the transmitter or the receiver powers both units. Compatible power connect sources: TP−578H and VS−62D.
- Automatic Live Input Detection - Based on video clock presence.
- Automatic Switching - To the last connected or priority video input.
- Automatic Analog Audio Detection and Embedding.
- Data Equalization and Reclocking.
- Protocol 3000 Support.
- Dimensions - US: 8.79cm x 11.8cm x 10.47 cm (3.46" x 4.65" x 4.12”) W, D, H.
- Decora US Wall Plate.
Applications:
- Small to medium boardroom switching
- Interfacing with a variety of source-to-remote displays in schools and businesses
- Bring-your-own laptop environments
Quick Facts
- Max Data Rate − 4.95Gbps
- Digital Audio Support
- Auto Live Input Detection
- Automatic Switching
- Automatic Analog Audio Detection and Embedding
- Data Equalization and Reclocking.
- Size - Wall Plate - 2 gang US.
- Audio - U
