Ethernet LAN features
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| WLAN data transfer rate (max) |
300 Mbit/s |
Antenna
| Antenna type |
External |
| Antennas quantity |
2 |
| Detachable antenna(s) |
Y |
| Antenna gain level (max) |
5 dBi |
Other features
| USB ports quantity |
1 |
| xDSL connection |
Y |
| USB version |
2.0 |
| Rack mounting |
N |
| Internal modem |
Y |
| Mobile network connection |
N |
| Downstream data rate |
21 Mbit/s |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
IPoA, PPPoA, PPPoE |
| DMZ support |
Y |
Security
| Firewall |
Y |
| VPN support |
PPTP, IPSec, L2TP |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |

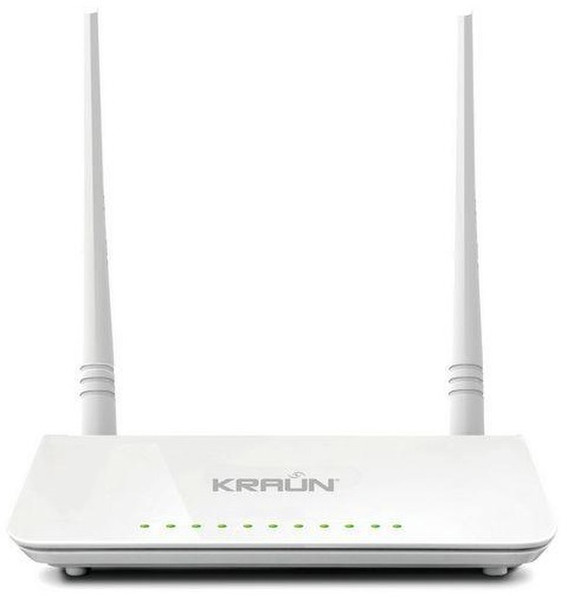

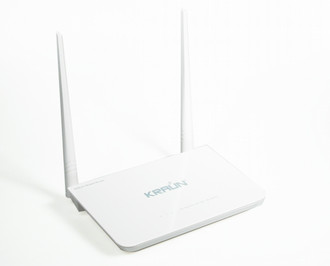

802.11 b/g/n (up to 300Mbps), Fast Ethernet, ADSL2/2+, White
A 3-in- 1 device that combines the functions of high-speed modem , wireless access point and 4-port switch RJ -45 connectors. With regard to the access, is equipped with an ADSL modem 2/ADSL 2 + can reach a maximum speed of 21 Mbps in download (depending on the service provided by your ISP ) , which ensures high performance while surfing in the internet. With 4 RJ-45 ports 10/100 Mbps you can create a wired network to share network resources and the Internet , while the integrated wireless technology allows you to connect to the network without wires at speeds up to 300 Mbps and navigate so quite freely anywhere within your home or using various network resources. The excellent signal reception is ensured by two 5dBi antennas . In addition, a USB port lets you share a USB storage into your network. The user-friendly interface of this router means that its configuration is very simple and makes it an ideal choice not only for home environments , but also for the small office .
