Performance
| Wavelength-division multiplexing (WDM) |
Y |
| Rx power (max) |
-14 dBmW |
| Rx power (min) |
-31 dBmW |
| Tx power (min) |
-19 dBmW |
| Maximum transfer distance |
2000 m |
| Fiber mode structure |
Multi-mode |
| Tx power (max) |
-14 dBmW |
| Wavelength |
1310 nm |
Networking
| Auto MDI/MDI-X |
Y |
| Duplex system |
Full |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Auto-negotiation |
Y |
Ports & interfaces
| Fiber ports quantity |
1 |
| Power over Ethernet (PoE) ports quantity |
1 |
| DC-in jack |
Y |
Power
| Power consumption (max) |
2 W |
Packaging content
| User guide |
Y |
| Quick installation guide |
Y |
Additionally
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Wireless technologies |
Wired |
| Transfer rate (Mbps) |
100 Mbit/s |

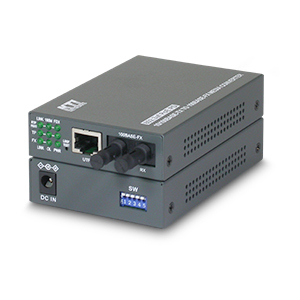

10/100BASE-TX - 100BASE-FX, 1310nm, 2km, 213g
The 350 series are designed to convert 10Base-T or 100Base-T signals to/from 100Base-FX fiber signals. They are used to extend the connection distance between two Ethernet devices via fiber cable transparently with no performance degradation. The variety of fiber options supported includes not only multimode, short reach up to long reach single mode fibers, but also Bi-Di WDM and CWDM fiber network applications. Because of 802.3af compliance, the converters can draw the power via Cat.5 cable connected to a PoE PSE switch or mis-span injector. This feature makes the converter ideal for remote areas of a network without AC power outlets.
<b>Important media converter functions:</b>
- Smart forwarding which can auto adapt the conversion to get the minimum latency according tothe connection speed
- Link fault pass through between two different media cables
- Transparent conversion for 802.1Q tagged packets
- Far end fault function on the fiber cnnection
- Manual (forced) configuration for the twisted-pair port to support non-auto devices
<b>Advanced media converter functions:</b>
- Support fiber remote loopback test for advanced installation
- Provide remote twisted-pair connection monitoring
- Support Din-rail mounting in Din-rail closet
- Support being powered by PoE via Cat.5 and USB in addition to typical AC power adapter
