Data transmission
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
1 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| Port mirroring |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Other features
| Management platform |
Web |
| Power LED |
Y |
| Networking features |
Gigabit, Fast Ethernet |
| Power supply type |
AC/DC |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |

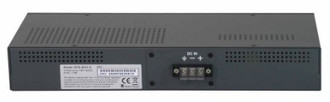

| DC-in jack |
Y |
| SFP/SFP+ slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Combo SFP ports quantity |
2 |
Protocols
| Management protocols |
STP / RSTP |
Design
| Safety |
FCC A, CE A, LVD, IEC 60950-1 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Power
| Input voltage |
100 - 240/36 - 72 V |
Additionally
| Wireless technologies |
Wired |
Web Smart 24-Port 10/100 Fast Ethernet Switch with 2 Gigabit Combo Ports

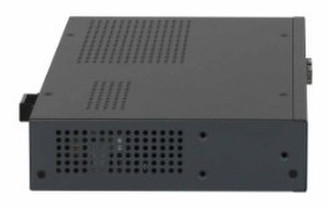

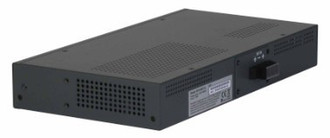

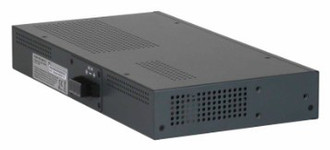

The KFS-2621 is a managed Fast Ethernet switch which is featured with the following switched ports and advantages in a 19” rack mountable box: - 24 10/100Mbps Fast Ethernet copper ports - 2 combo ports - 10/100/1000Mbps copper & 1000Base-X SFP
Technical Specifications
- Provide 24 10/100Mbps Fast Ethernet ports & 2 Gigabit combo ports
- All copper ports support auto-negotiation and auto-MDI/MDI-X detection
- Wire speed reception and transmission
- Supports 802.3x flow control for full-duplex and backpressure for half-duplex
- Store-and-Forward switching method
- Self learning for active MAC addresses up to 4K entries
- Provide in-band web-based management interface
- Provide port status, statistic monitoring and control function
- Provide port bandwidth control function
- Provide static and LACP port link aggregation function
- Support port-based and 802.1Q Tag-based VLAN
- Provide QoS function
- Support 802.1w RSTP and 802.1D STP
- Provide IGMP snooping function
- Support DHCP for dynamic IP configuration
- 19” rack mountable
- No fan design
- Wide operating temperature range
