Ports & interfaces
Installed SFP modules quantity |
2 |
Basic switching RJ-45 Ethernet ports quantity |
8 |
DC-in jack |
Y |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Console port |
RS-232 |
SFP module slots quantity |
2 |
Combo SFP ports quantity |
2 |
Data transmission
MAC address table |
8 entries |
Switching capacity |
1 Gbit/s |
Throughput |
1000 Mpps |
Networking
Port mirroring |
Y |
VLAN support |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Tagged VLAN |
Y |
Link aggregation |
N |
MAC address auto-learning supported |
Y |
Port-based VLAN |
Y |
DHCP client |
Y |
10G support |
N |
Full duplex |
Y |
Power over Ethernet (PoE)
Power over Ethernet (PoE) voltage range |
44 - 54 V |
Power over Ethernet (PoE) |
Y |
Management features
Quality of Service (QoS) support |
Y |
Power
Power consumption (max) |
70 W |
Additionally
On/Off switch |
Y |
AC adapter bundled |
Y |

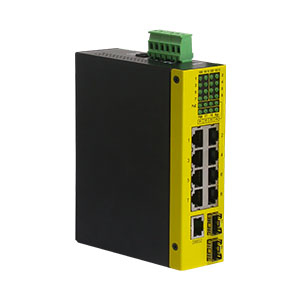

Industrial Managed 8-Port L2 Gigabit Ethernet Switches with 2 SFP Slots and 4 PoE PSE Ports
The KGD-802 is an industrial managed Gigabit Ethernet switch which is featured with the following
switched ports:
Six 10/100/1000Mbps Gigabit copper ports
Two combo ports - 10/100/1000Mbps copper & 1000Base-X SFP
