Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
1 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| 10G support |
N |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| DC-in jack |
Y |
| SFP/SFP+ slots quantity |
4 |
| Gigabit Ethernet (copper) ports quantity |
12 |
| Combo SFP ports quantity |
4 |
Protocols
| Management protocols |
Web/Telnet/SSH/HTTPS/SNMP |
Management features
| Quality of Service (QoS) support |
Y |
Other features
| Power LED |
Y |
| Wi-Fi |
N |
| Networking features |
Gigabit Ethernet |
| Power supply type |
AC/DC |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

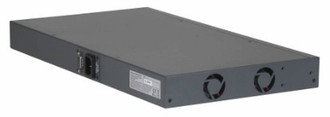

Managed 16-Port Gigabit Ethernet Switches with 4 SFP Slots
Product Description
The 16-port Managed Gigabit Ethernet Switches are standard L2 switches that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switches have 12 10/100/1000Mbps copper ports and 4 combo ports with copper and Gigabit SFP slots. The switches support console CLI, Telnet CLI, Web GUI and SNMP interface for switch management. The network administrator can logon the switch to monitor and configure port operating mode, Quality of Service, and powerful L2 switching functions such as VLAN, IGMP, RSTP etc. In addition, the switches are also featured with security functions such as IEEE802.1x and ACL.
Technical Specifications
- Provides 16 10/100/1000Mbps RJ-45 and four Gigabit SFP slots (4 combo ports)
- Provides in-band console CLI, web and SNMP management interfaces
- All copper ports support auto-negotiation and auto-MDI/MDI-X detection
- Power saving support
- The SFP slots support 1000BASE-X SFP transceivers
- Provides Gigabit full wire speed forwarding
- Supports 802.3x flow control for Full-duplex and backpressure for Half-duplex
- Support jumbo frames
- 19” rack mountable
- Both AC powered model and DC powered model are available for choice.
