Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| SFP module slots quantity |
16 |
| SFP/SFP+ slots quantity |
16 |
| Combo SFP ports quantity |
8 |
Data transmission
| Supported data transfer rates |
1000 Mbps |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| VLAN support |
Y |
| 10G support |
N |
| Full duplex |
N |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

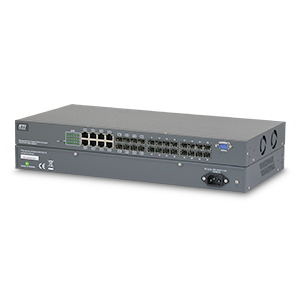

KGS-2420 - 24-Port Ethernet, SFP, TP/SFP
A 24-port Gigabit L2 Plus Managed Switch, is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. 16-Port 1000Mbps SFP and 8-Port Combo Gigabit TP/SFP Fiber dual media management Ethernet switch. The switch can be managed through RS-232 serial port via directly connection, or through Ethernet port using CLI or Web-based management unit, associated with SNMP agent. With the SNMP agent, the network administrator can logon the switch to monitor, configure and control each port’s activity in a friendly way.
