Wireless LAN features
| Maximum outdoor range |
250 m |
| Maximum indoor range |
30 m |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
| WLAN data transfer rate (max) |
450 Mbit/s |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Number of WLAN connections (max) |
512 |
Other features
| USB version |
2.0 |
| Frequency range |
2.400 - 2.484 GHz |
| USB ports quantity |
1 |
| Bandwidth (first) |
2.4 GHz |
| Bandwidth (second) |
5 GHz |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
Management features
| Web-based management |
Y |
| Quality of Service (QoS) support |
Y |
Security
| MAC address filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
Ethernet LAN features
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Networking
| Routing protocols |
RIP-2, RIP-1, IP |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
2400-2483.5 MHz (ISM) or 5150-5825 MHz, EEE 802.11b/g/a/h/n, 10/100/1000 Mbps Ethernet, USB 2.0

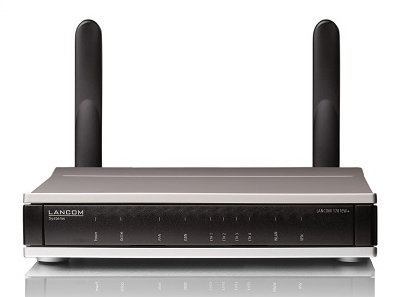

The professional VPN router LANCOM 1781EW+ is the powerful basis of a high-speed Internet access via external cable modems. Due to its modern hardware platform it is ideal for Gigabit-speed Internet connections. With its intergrated dual band WLAN based on IEEE 802.11a/b/g/n with 3x3 MIMO the LANCOM 1781EW+ also connects wireless clients with up to 450 Mbps at both 2.4 and 5 GHz. With its extensive VPN capabilities, the device provides secure, high-performance connectivity to branch offices and remote workers. The four ports of the integrated Gigabit Ethernet switch ensure maximum performance and are also energy-efficient based on IEEE 802.3az: If no data is transmitted over an interface, its power consumption shuts down automatically. The LANCOM 1781EW+ provides everything required of a modern enterprise network, such as comprehensive Quality-of-Service capabilities and an object-oriented firewall.
