Networking
| Supports ISDN connection |
Y |
| Supported WAN type |
VDSL\nEthernet |
Security
| Firewall security |
NAT, SIF |
| Authentication method |
802.1x RADIUS, TACACS+ |
| VPN support |
IPSec |
| NAT functionality |
HW-NAT TCP |
| VPN tunnels quantity |
5 |
| System event log |
Y |
| Firewall |
Y |
| URL filtering |
Y |
| MAC address filtering |
Y |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| USB ports quantity |
1 |
| DC-in jack |
Y |
Protocols
| Routing protocols |
RIP-2 |
| Management protocols |
Telnet/SSL, SSH, TFTP, SNMP, HTTPS/HTTP |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
ARP, proxy ARP, BOOTP, LANCAPI, DHCP, DNS, HTTP, HTTPS, IP, ICMP, NTP/SNTP, NetBIOS, PPPoE (server), RADIUS, RIP-1, RIP-2, RTP, SIP, SNMP, TCP, TFTP, UDP, VRRP |
Mobile networking
| Data network |
GPRS, HSDPA, UMTS |
DSL features
| DSL specification |
VDSL2, ADSL1, ADSL2, ADSL2+ |
Power
| Power over Ethernet (PoE) |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Performance
| Mac operating systems supported |
Y |
Design
| Form factor |
1U |
| Rack mounting |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
MAC/IP/URL |
| Ethernet LAN (RJ-45) ports quantity |
4 |

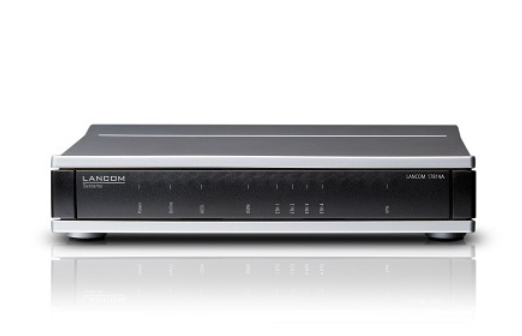

VPN Router w/ Integrated VDSL & ADSL2+ Modem, EU, over ISDN
The LANCOM 1781VA is a professional, high-performance VPN router for high-speed Internet access with integrated VDSL2 and ADSL2+ modem. Thus it provides maximum flexibility for a transition from ADSL to high-speed VDSL Internet connections. Likewise, an operation without splitter is possible based on ADSL2+ Annex B / J (over ISDN) or A / M (over POTS). In all industries and branches of trade with high demands on security and performance it is the ideal foundation for a professional site connectivity. With its extensive VPN capabilities, the device provides secure, high-performance connectivity to branch offices and remote workers. The four ports of the integrated Gigabit Ethernet switch ensure maximum performance and are also energy-efficient based on IEEE 802.3az: If no data is transmitted over an interface, its power consumption shuts down automatically. The LANCOM 1781VA supplies everything required of a modern enterprise network, such as comprehensive Quality-of-Service capabilities and an object-oriented firewall.
